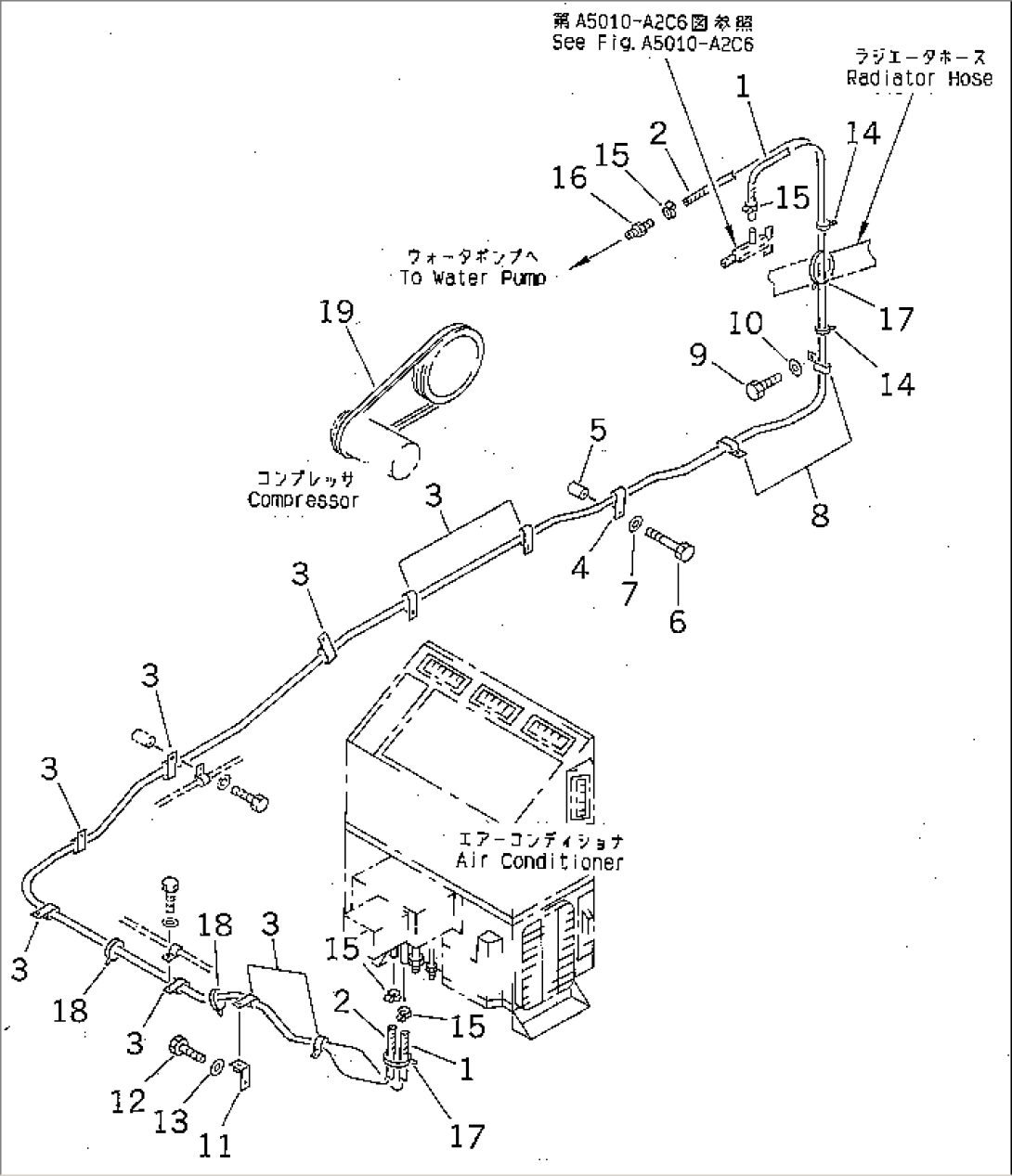

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-00456 | HOSE | 10233-@ | |
| 2 | 09483-00459 | HOSE | 10233-@ | |
| 3 | 141-06-11220 | CLIP | 10233-@ | |
| 4 | 141-06-11220 | CLIP | 10233-@ | |
| 5 | 142-03-11160 | SPACER | 10233-@ | |
| 6 | 01010-51260 | BOLT | 10233-10337 | |
| 7 | 01643-31232 | WASHER | 10233-@ | |
| 8 | 141-06-11220 | CLIP | 10233-@ | |
| 9 | 01010-51225 | BOLT | 10233-10337 | |
| 10 | 01643-31232 | WASHER | 10233-@ | |
| 11 | 207-979-6180 | BRACKET | 10233-@ | |
| 12 | 01010-51225 | BOLT | 10233-10337 | |
| 13 | 01643-31232 | WASHER | 10233-@ | |
| 14 | 08034-00519 | BAND | 10233-@ | |
| 15 | 09480-10100 | CLAMP | 10233-@ | |
| 16 | 207-977-5110 | NIPPLE | 10233-@ | |
| 17 | 08034-00536 | BAND | 10233-@ | |
| 18 | 08034-00519 | BAND | 10233-@ | |
| 19 | 207-978-5150 | V-BELT | 10233-@ |
