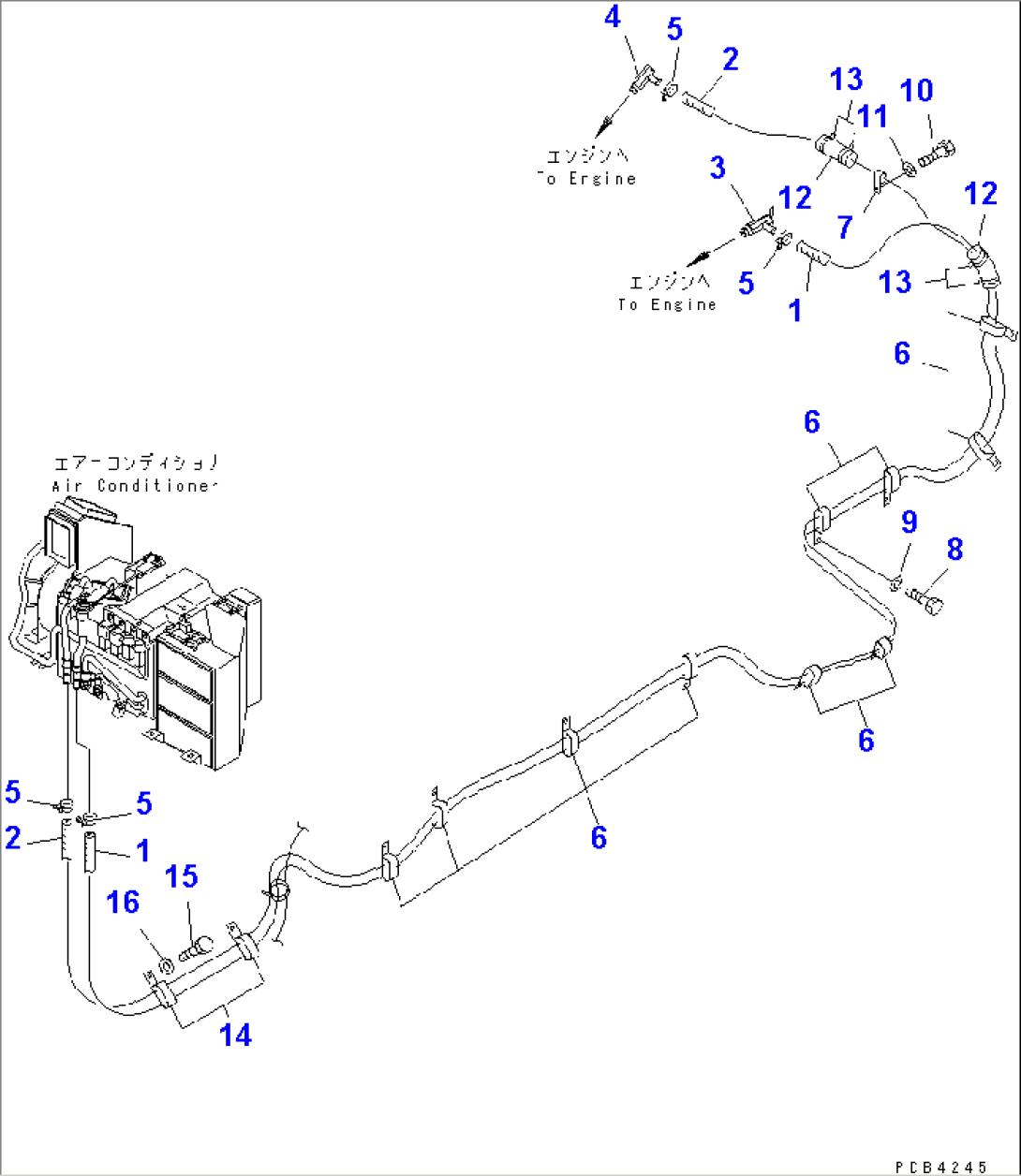

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-00464 | HOSE | 30001-30013 | |
| 2 | 09483-00471 | HOSE | 30001-30013 | |
| 3 | 09482-20000 | VALVE | 30001-@ | |
| 4 | 202-981-1340 | JOINT | 30001-@ | |
| 5 | 09480-10100 | CLAMP | 30001-@ | |
| 6 | 141-06-11220 | CLIP | 30001-30013 | |
| 7 | 140-06-18440 | CLIP | 30001-@ | |
| 8 | 01010-81230 | BOLT | 30001-30013 | |
| 9 | 01643-31232 | WASHER | 30001-30013 | |
| 10 | 01010-81020 | BOLT | 30001-30013 | |
| 11 | 01643-31032 | WASHER | 30001-@ | |
| 12 | 205-62-53780 | COVER | 30001-30013 | |
| 13 | 08034-00536 | BAND | 30001-30013 | |
| 14 | 04435-52112 | CLIP | 30001-30013 | |
| 15 | 01010-81230 | BOLT | 30001-30013 | |
| 16 | 01643-31232 | WASHER | 30001-30013 |
