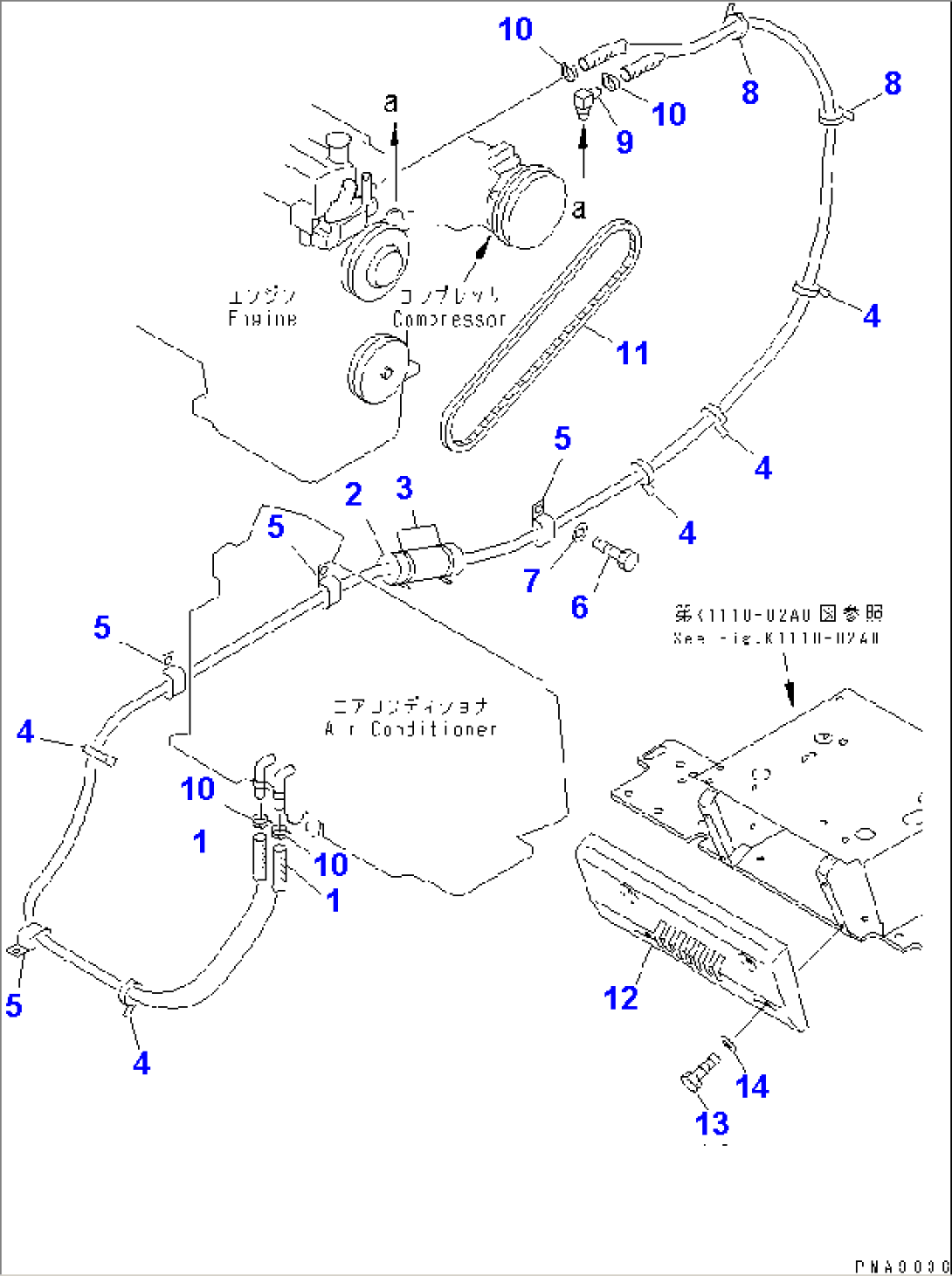

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-00433 | HOSE | 1004-1190 | |
| 2 | 203-62-41150 | COVER | 1004-1190 | |
| 3 | 08034-00823 | BAND | 1004-1190 | |
| 4 | 08034-00519 | BAND | 1004-1190 | |
| 5 | 04435-52112 | CLIP | 1106-1190 | |
| 141-06-11220 | CLIP | 1004-1105 | ||
| 6 | 01010-81220 | BOLT | 1004-1190 | |
| 7 | 01643-31232 | WASHER | 1004-1190 | |
| 8 | 08034-00823 | BAND | 1004-1190 | |
| 9 | 20S-977-1170 | ELBOW | 1004-1190 | |
| 10 | 09480-10100 | CLAMP | 1004-1190 | |
| 11 | 04120-21746 | V-BELT | 1004-1190 | |
| 12 | 20U-54-28280 | COVER | 1166-1190 | |
| 201-54-73480 | COVER | 1004-1165 | ||
| 13 | 01220-70820 | SCREW | 1004-1190 | |
| 14 | 01643-80823 | WASHER | 1004-1190 |
