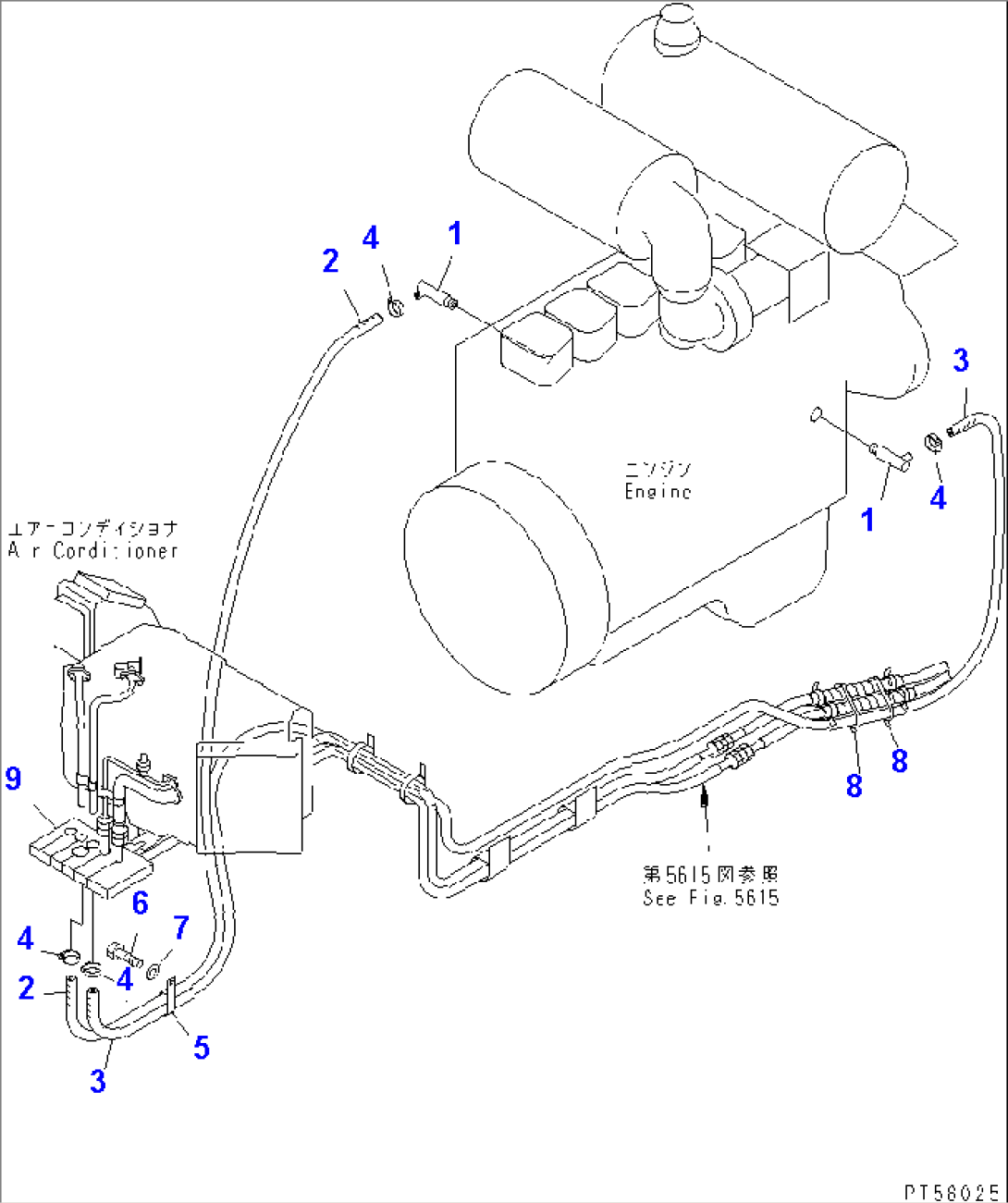

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-809-4210 | JOINT | 5001- | |
| 2 | 09483-00413 | HOSE | 5001- | |
| 3 | 09483-00425 | HOSE | 5001- | |
| 4 | 07281-00197 | CLAMP | 5001- | |
| 5 | 04435-52110 | CLIP | 5001- | |
| 6 | 01010-81020 | BOLT | 5001- | |
| 7 | 01643-31032 | WASHER | 5001- | |
| 8 | 08034-20536 | BAND | 5001- | |
| 9 | 23D-809-4260 | CUSHION | 5001- |
