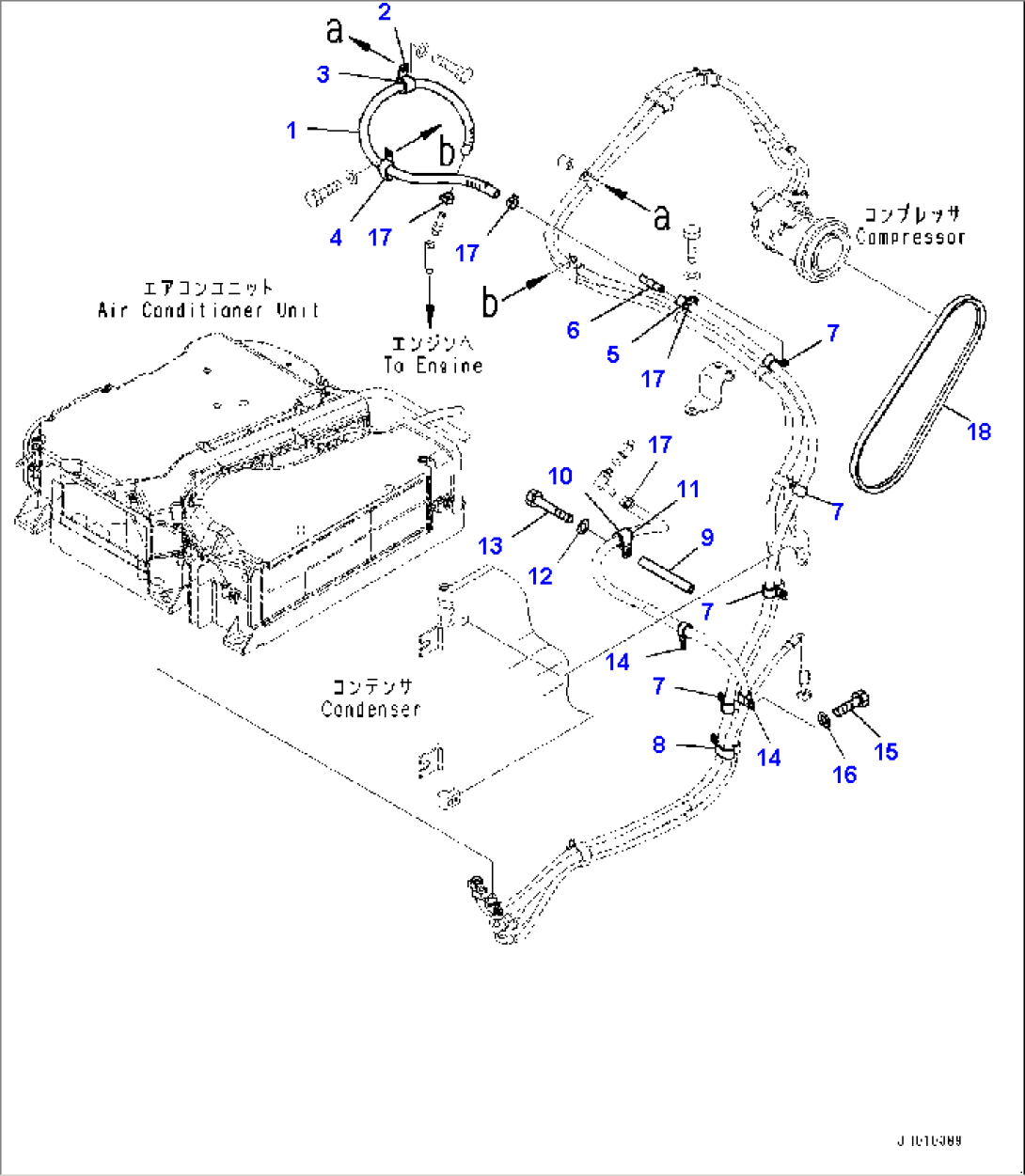

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-979-4230 | Hose | 1001-@ | |
| 2 | 04434-52712 | Clip | 1001-@ | |
| 3 | 07095-40420 | Cushion | 1001-@ | |
| 4 | 20Y-810-1170 | Clip | 1001-@ | |
| 5 | 04434-51612 | Clip | 1001-@ | |
| 6 | 11Y-979-5740 | Connector | 1001-@ | |
| 7 | 04434-52112 | Clip | 1001-@ | |
| 8 | 04435-52112 | Clip | 1001-@ | |
| 9 | 195-61-21440 | Spacer | 1001-@ | |
| 10 | 04434-52712 | Clip | 1001-@ | |
| 11 | 07095-40420 | Cushion | 1001-@ | |
| 12 | 01643-31232 | Washer | 1001-@ | |
| 13 | 01011-81285 | Bolt | 1001-@ | |
| 14 | 04434-52112 | Clip | 1001-@ | |
| 15 | 01010-81230 | Bolt | 1001-@ | |
| 16 | 01643-31232 | Washer | 1001-@ | |
| 17 | 11Y-09-11160 | Clip | 1001-@ | |
| 18 | 04120-21747 | V-belt | 1001-@ |
