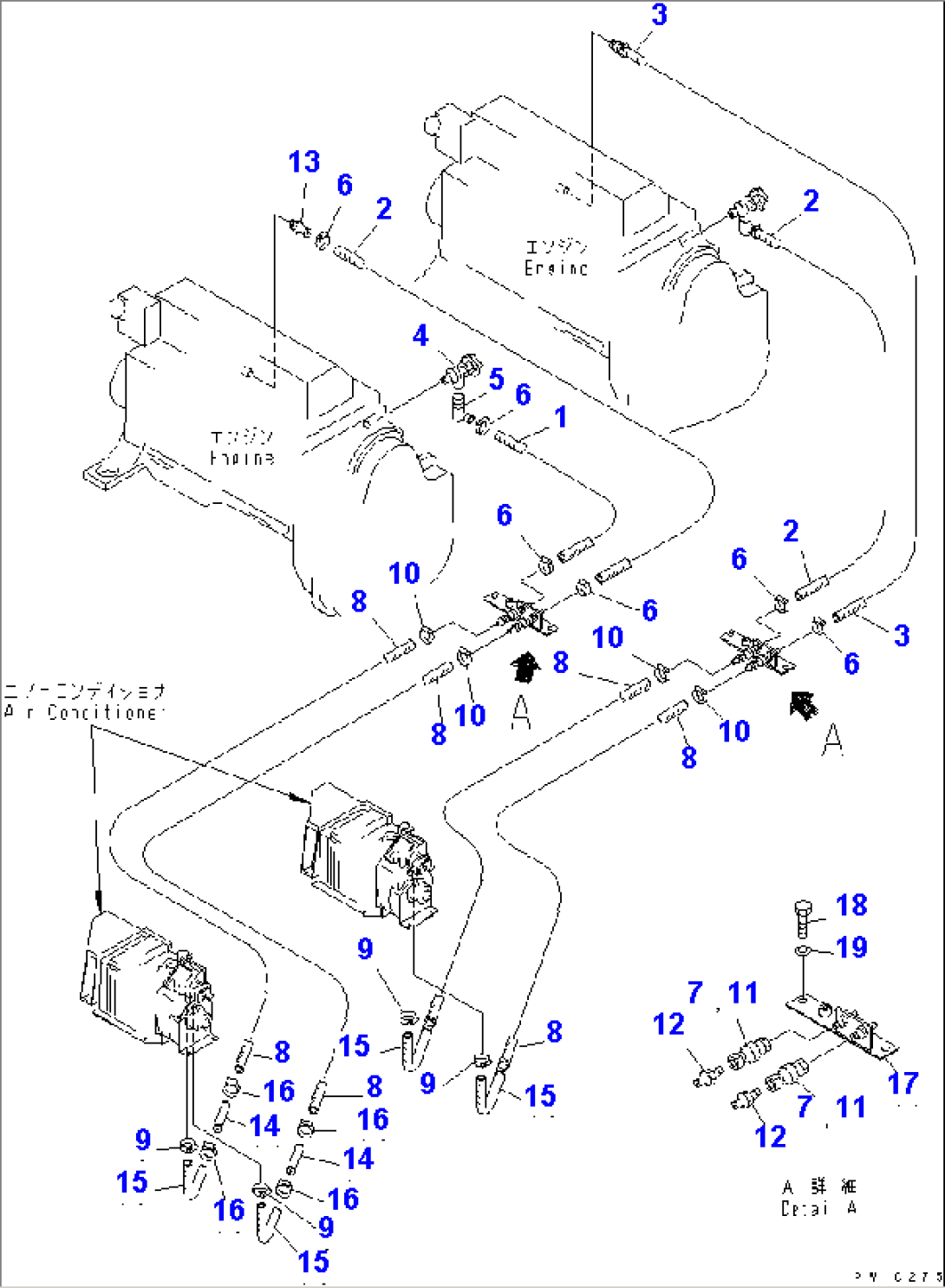

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-10564 | HOSE | 10002-@ | |
| 2 | 09483-10572 | HOSE | 10002-@ | |
| 3 | 09483-10580 | HOSE | 10002-@ | |
| 4 | 195-911-5591 | VALVE | 10001-10999 | |
| 5 | 176-911-4280 | JOINT | 10001-10999 | |
| 6 | 07281-00289 | CLAMP | 10001-10999 | |
| 7 | 195-Z11-6990 | COUPLING | 10001-@ | |
| 8 | 09483-00411 | HOSE | 10002-@ | |
| 9 | 07281-00259 | CLAMP | 10002-@ | |
| 10 | 09480-10100 | CLAMP | 10001-@ | |
| 11 | 195-Z11-6990 | COUPLING | 10001-@ | |
| 12 | 207-977-5110 | NIPPLE | 10001-10999 | |
| 13 | 145-Z79-5610 | JOINT | 10002-@ | |
| 14 | 09484-00450 | CONNECTOR | 10001-@ | |
| 15 | 09483-20450 | HOSE | 10001-@ | |
| 16 | 09480-10100 | CLAMP | 10001-10999 | |
| 17 | 21T-979-7440 | BRACKET | 10001-@ | |
| 18 | 01010-81225 | BOLT | 10001-@ | |
| 19 | 01643-31232 | WASHER | 10001-@ |
