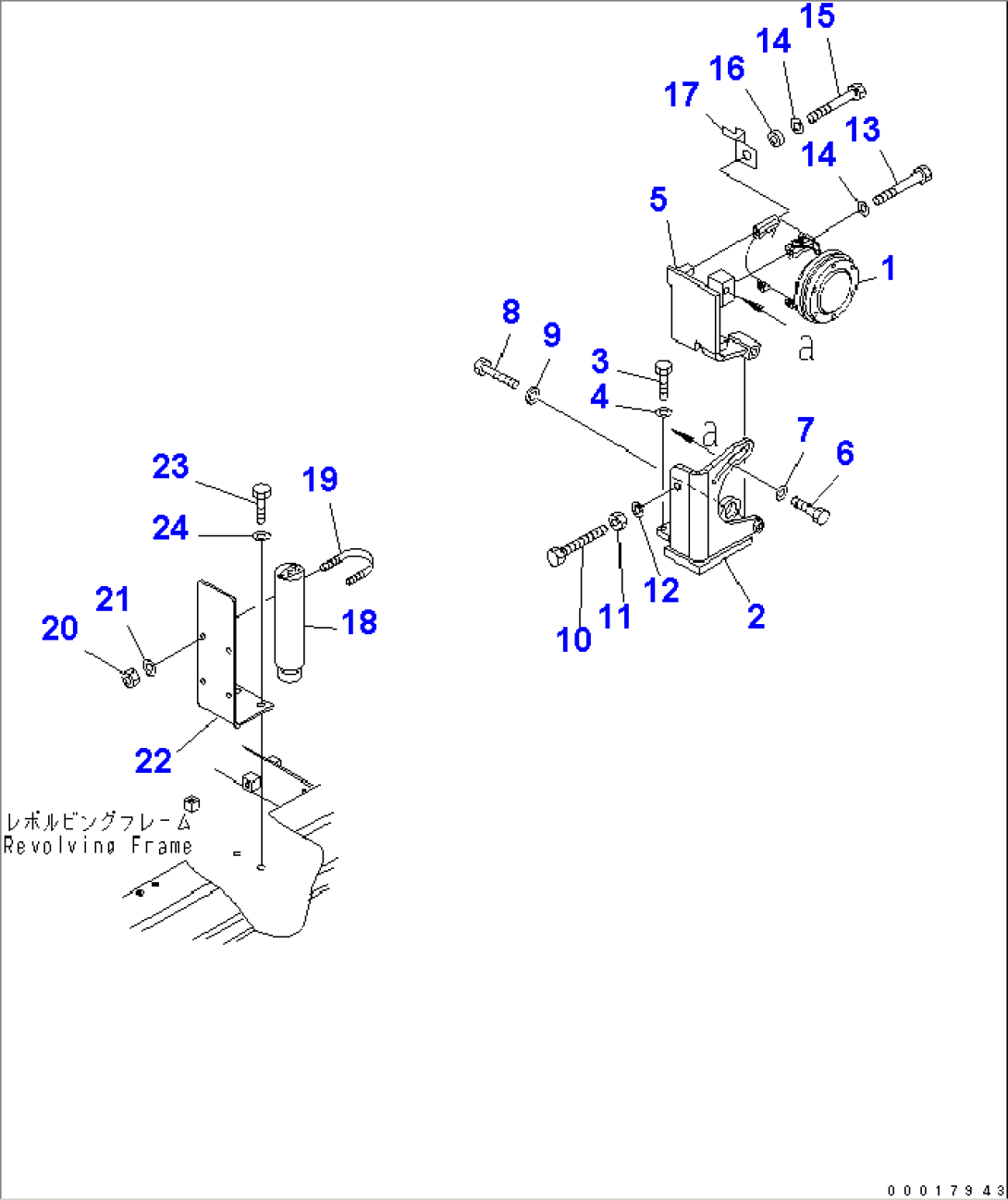

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-979-6121 | COMPRESSOR ASS'Y | 11001- | |
| 2 | 20Y-979-6641 | BRACKET | 11017- | |
| 3 | 01010-81035 | BOLT | 11017- | |
| 4 | 01643-31032 | WASHER | 11001- | |
| 5 | 20Y-979-6612 | BRACKET | 11017- | |
| 6 | 01010-81440 | BOLT | 11017- | |
| 7 | 195-71-32220 | WASHER | 11017- | |
| 8 | 01019-31400 | BOLT | 11017- | |
| 9 | 198-38-12460 | SPACER | 11017- | |
| 10 | 01017-51420 | BOLT | 11017- | |
| 11 | 01580-11411 | NUT | 11017- | |
| 12 | 01643-31445 | WASHER | 11017- | |
| 13 | 01010-80875 | BOLT | 11001- | |
| 14 | 01643-30823 | WASHER | 11001- | |
| 15 | 01010-80885 | BOLT | 11001- | |
| 16 | 6204-81-6740 | SPACER | 11001- | |
| 17 | 08053-01510 | CLIP | 11001- | |
| 18 | 20Y-979-3120 | TANK | 11001- | |
| 19 | 07283-36155 | CLIP | 11001- | |
| 20 | 01597-01009 | NUT | 11001- | |
| 21 | 01643-31032 | WASHER | 11001- | |
| 22 | 20Y-979-6621 | PLATE | 11001- | |
| 23 | 01010-81230 | BOLT | 11001- | |
| 24 | 01643-31232 | WASHER | 11001- |
