| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-979-2731 | Duct | 1001- | |
| 2 | 17M-911-3530 | Element | 1001- | |
| 3 | 09416-10200 | Rivet | 1001- | |
| 4 | 22B-979-2741 | Duct | 1001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc228uslc 10 s/n 1001 up
- Operator's compartment and control system
- Air conditioner, duct (#1001 )
Поиск по каталогу

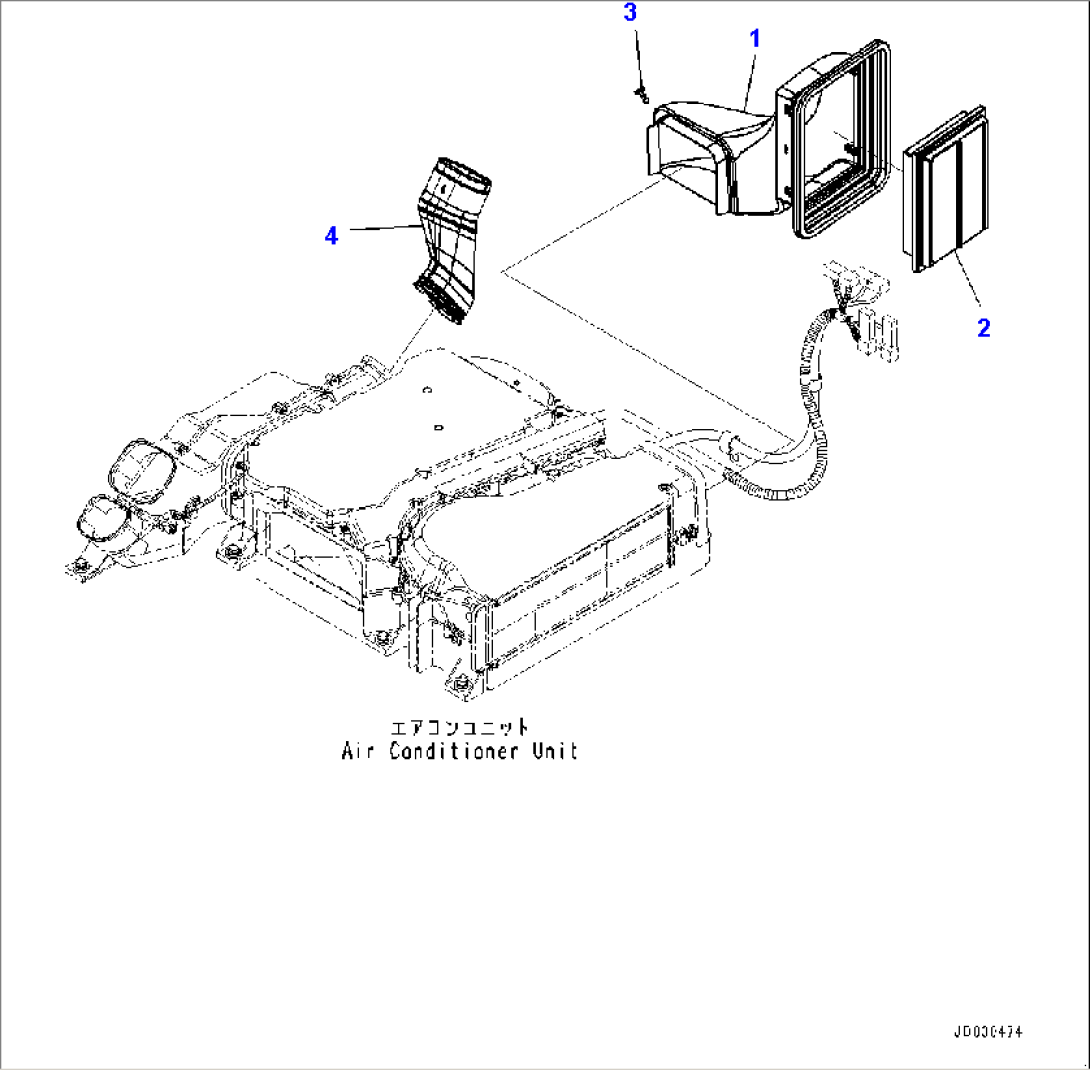

Air Conditioner, Duct (#1001-)
