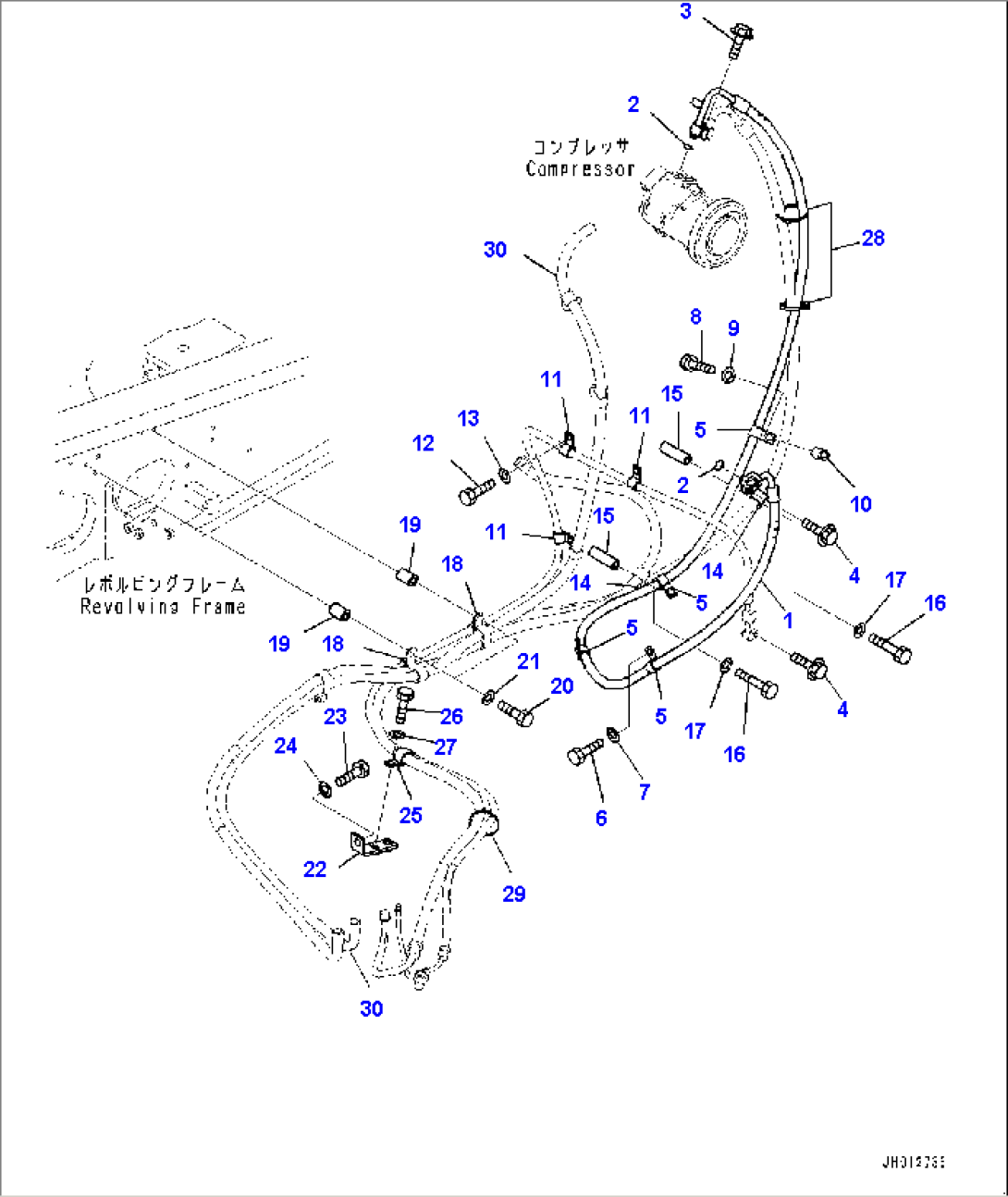

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2A5-979-1731 | Hose | 451080- | |
| 2 | 20Y-979-3140 | O-ring | 451080- | |
| 3 | 01435-00630 | Bolt | 451080- | |
| 4 | 01435-00625 | Bolt | 451080- | |
| 5 | 04434-51912 | Clip | 451080- | |
| 6 | 01010-81230 | Bolt | 451080- | |
| 7 | 01643-31232 | Washer | 451080- | |
| 8 | 01010-81270 | Bolt | 451080- | |
| 9 | 01643-31232 | Washer | 451080- | |
| 10 | 14X-54-26640 | Collar | 451080- | |
| 11 | 04434-51512 | Clip | 451080- | |
| 12 | 01010-81230 | Bolt | 451080- | |
| 13 | 01643-31232 | Washer | 451080- | |
| 14 | 04434-52112 | Clip | 451080- | |
| 15 | 195-979-3570 | Collar | 451080- | |
| 16 | 01010-81295 | Bolt | 451080- | |
| 17 | 01643-31232 | Washer | 451080- | |
| 18 | 2A5-979-1470 | Clip | 451080- | |
| 19 | 20Y-03-11220 | Collar | 451080- | |
| 20 | 01010-81260 | Bolt | 451080- | |
| 21 | 01643-31232 | Washer | 451080- | |
| 22 | 2A5-979-1561 | Bracket | 451080- | |
| 23 | 01010-81230 | Bolt | 451080- | |
| 24 | 01643-31232 | Washer | 451080- | |
| 25 | 20Y-810-1170 | Clip | 451080- | |
| 26 | 01010-81230 | Bolt | 451080- | |
| 27 | 01643-31232 | Washer | 451080- | |
| 28 | 6218-81-8480 | Band | 451080- | |
| 29 | 08034-20519 | Band | 451080- | |
| 30 | (2A5-979-1711) | Hose Assembly | - | |
| (2A5-979-1711) | Hose Assembly | - | ||
| (2A5-979-1711) | Hose Assembly | - | ||
| (2A5-979-1711) | Hose Assembly | - |
