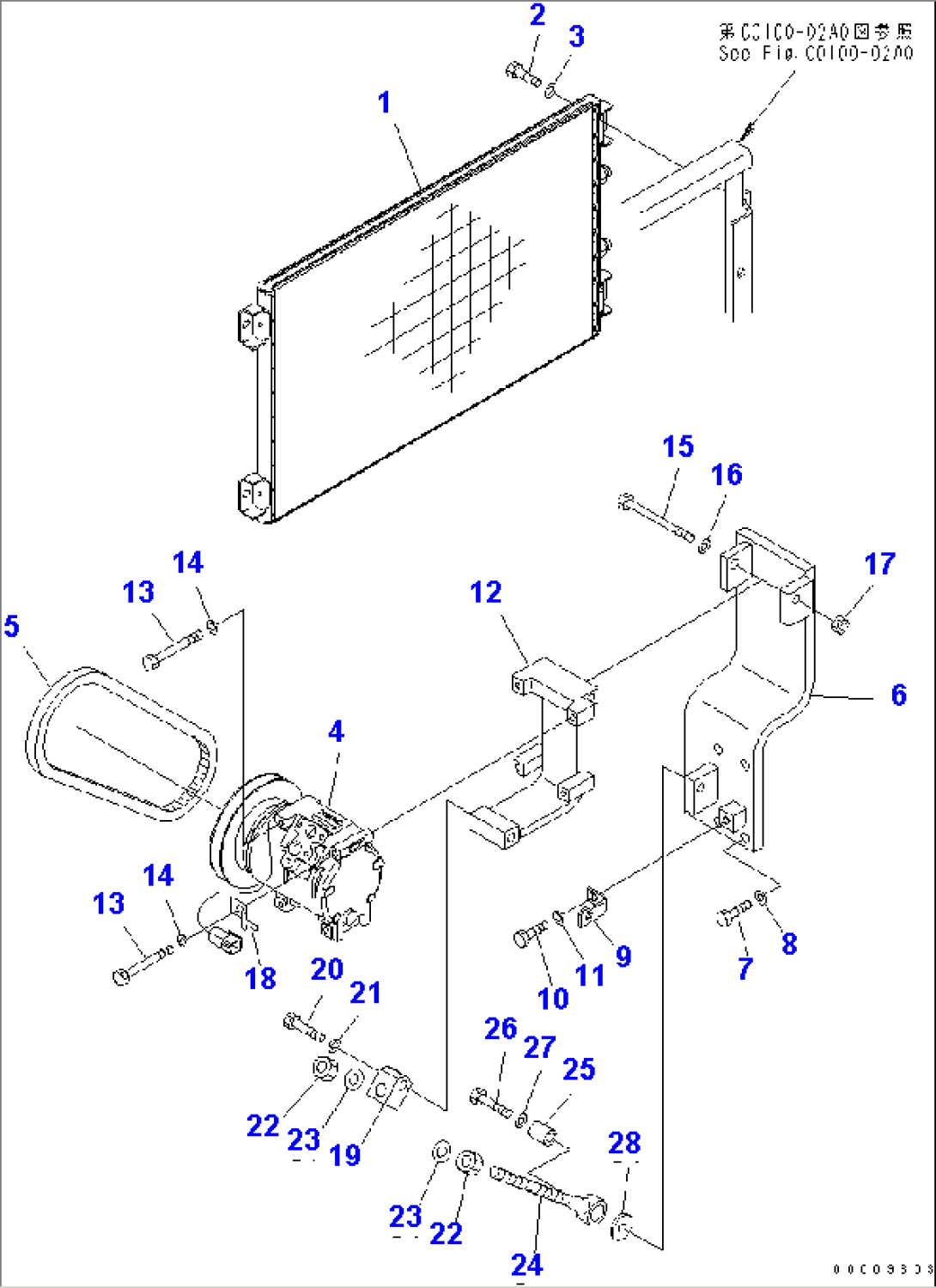

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-979-6131 | CONDENSER ASSEMBLY | K40001- | |
| 2 | 01010-80820 | BOLT | K40001- | |
| 3 | 01643-30823 | WASHER | K40001- | |
| 4 | (20Y-979-6121) | COMPRESSOR ASSEMBLY | K40001- | |
| 5 | 04120-21737 | V-BELT | K40001- | |
| 6 | 21M-979-1511 | BRACKET | K40001- | |
| 7 | 01010-81235 | BOLT | K40001- | |
| 8 | 01643-31232 | WASHER | K40001- | |
| 9 | 207-62-51270 | BRACKET | K40001- | |
| 10 | 01010-81230 | BOLT | K40001- | |
| 11 | 01643-31232 | WASHER | K40001- | |
| 12 | 21M-979-1410 | BRACKET | K40001- | |
| 13 | 01010-80875 | BOLT | K40001- | |
| 14 | 01643-30823 | WASHER | K40001- | |
| 15 | 01019-31240 | BOLT | K40001- | |
| 16 | 01643-31232 | WASHER | K40001- | |
| 17 | 01580-11210 | NUT | K40001- | |
| 18 | 08053-01510 | CLIP | K40001- | |
| 19 | 6150-82-8690 | PLATE | K40001- | |
| 20 | 01010-81250 | BOLT | K40001- | |
| 21 | 01643-31232 | WASHER | K40001- | |
| 22 | 01580-11411 | NUT | K40001- | |
| 23 | 01643-31445 | WASHER | K40001- | |
| 24 | 6150-82-8610 | ROD | K40001- | |
| 25 | 6215-81-6150 | PIN | K40001- | |
| 26 | 01010-81250 | BOLT | K40001- | |
| 27 | 01643-32260 | WASHER | K40001- | |
| 28 | 175-54-34170 | WASHER | K40001- |
