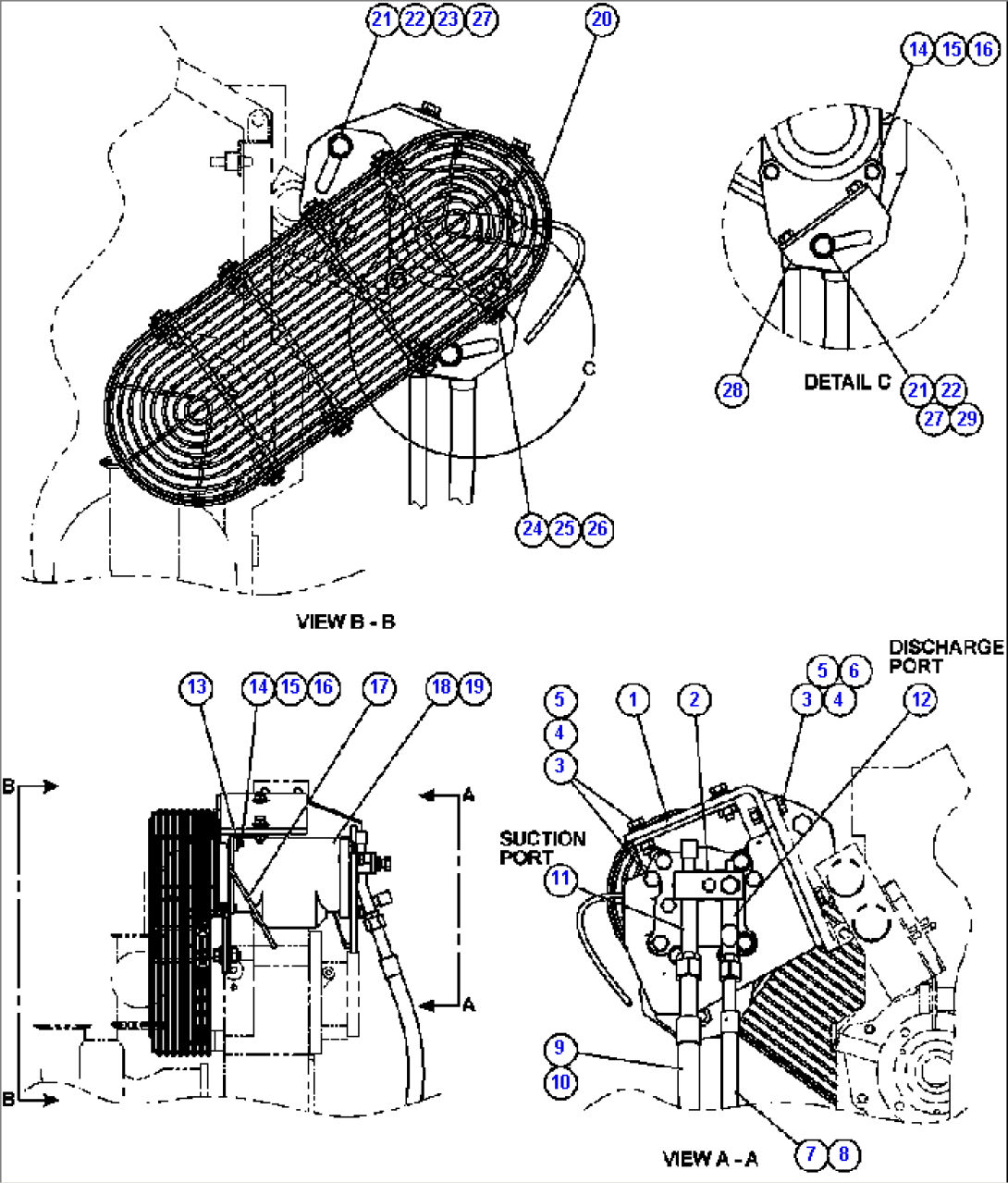

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EM3227 | MOUNT, AIR CONDITIONER GUARD | ||
| 2 | EJ1087 | HOLDDOWN, ADJUSTABLE (SEE INDEX) | ||
| 3 | MM0607 | CAPSCREW - M10 X 1.50 X 35 | ||
| 4 | MM0461 | FLAT WASHER - M10 | ||
| 5 | MM0471 | LOCKWASHER - M10 | ||
| 6 | MM0178 | NUT - M10 X 1.50 | ||
| 7 | HA7994 | HOSE (TO CONDENSER) | ||
| 8 | WA1732 | O-RING | ||
| 9 | HA8066 | HOSE (FROM ACCUMULATOR) | ||
| 10 | WA1733 | O-RING - 9/16" I.D. | ||
| 11 | PC1831 | FITTING ASSEMBLY, A/C COMPRESSOR | ||
| 12 | PB9152 | FITTING ASSEMBLY, A/C COMPRESSOR | ||
| 13 | EH3653 | BRACKET | ||
| 14 | MM0593 | CAPSCREW - M8 X 1.25 X 20 | ||
| 15 | MM0460 | FLAT WASHER - M8 | ||
| 16 | MM0470 | LOCKWASHER - M8 | ||
| 17 | EH5046 | HARNESS, A/C COMPRESSOR JUMPER | ||
| 17 | VZ4843 | TYRAP | ||
| 18 | PC1816 | COMPRESSOR, A/C (SEE INDEX) | ||
| 19 | PC2050 | V-BELTS (MATCHED SET) | ||
| 20 | EL4735 | GUARD, A/C BELT | ||
| 21 | MM0472 | LOCKWASHER - M12 | ||
| 22 | MM0714 | FLAT WASHER - M12 (HARDENED) | ||
| 23 | EL8159 | BRACKET | ||
| 24 | PC1119 | WASHER, RUBBER | ||
| 25 | C1547 | FLAT WASHER - 3/8" | ||
| 26 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 27 | MM0619 | CAPSCREW - M12 X 1.75 X 35 | ||
| 28 | EK2559 | BRACKET, MOUNTING | ||
| 29 | EL8157 | BRACKET |
