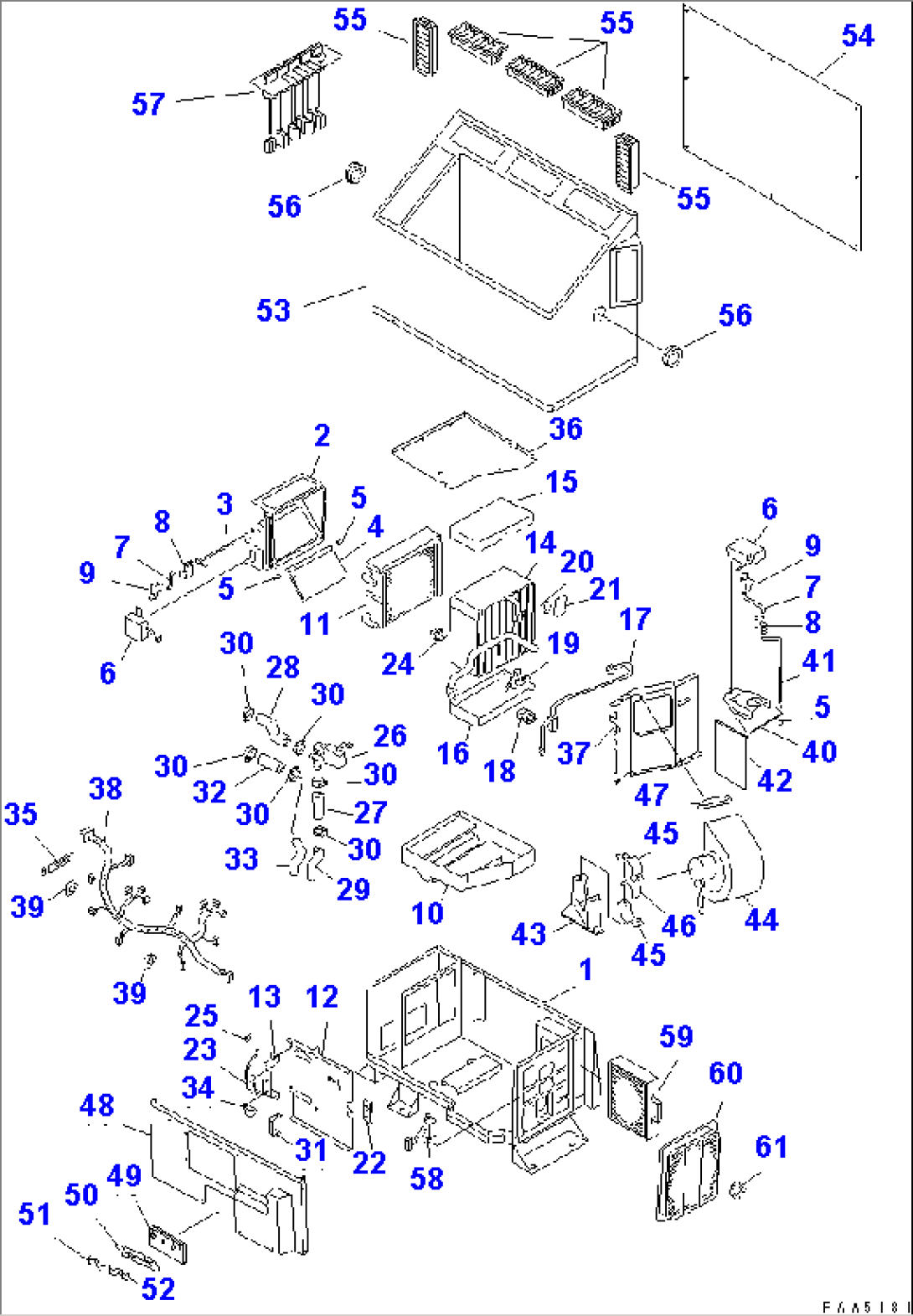

| Item | Part No. | Part Name | Qty | Serial No. |
| 201-979-7111 | AIR CONDITIONER UNIT | 1004-1190 | ||
| 1 | TW7020-0150 | CASE ASS'Y | 1004-1190 | |
| 2 | TW7021-0180 | CASE,DAMPER | 1004-1190 | |
| 3 | TW7026-0070 | SHAFT | 1004-1190 | |
| 4 | TW7026-0080 | DAMPER | 1004-1190 | |
| 5 | TW7027-0080 | SPACER | 1004-1190 | |
| 6 | TW7040-0050 | MOTOR | 1004-1190 | |
| 7 | TW7026-0010 | ROD | 1004-1190 | |
| 8 | TW7025-0480 | CLIP | 1004-1190 | |
| 9 | TW7025-0490 | CLIP | 1004-1190 | |
| 10 | TW7020-0060 | CASE ASS'Y | 1004-1190 | |
| 11 | TW7010-0050 | HEATER ASS'Y | 1004-1190 | |
| 12 | TW7023-0150 | PLATE | 1004-1190 | |
| 13 | TW7023-0210 | STAY | 1004-1190 | |
| 14 | TW7011-0020 | EVAPORATOR | 1004-1190 | |
| 15 | TW7024-0060 | COVER | 1004-1190 | |
| 16 | TW7024-0070 | COVER | 1004-1190 | |
| 17 | TW7012-0070 | TUBE | 1004-1190 | |
| 18 | TW7041-0040 | SWITCH | 1004-1190 | |
| 19 | TW7003-0070 | EXPANDER | 1004-1190 | |
| 20 | TW7025-0100 | CLAMP | 1004-1190 | |
| 21 | TW7035-0050 | TAPE | 1004-1190 | |
| 22 | TW7033-0100 | GROMMET | 1004-1190 | |
| 23 | TW7042-0020 | AMP ASS'Y,THERMISTOR | 1004-1190 | |
| 24 | TW7025-0540 | CLAMP | 1004-1190 | |
| 25 | TW7033-0120 | GROMMET | 1004-1190 | |
| 26 | TW7040-0060 | VALVE | 1004-1190 | |
| 27 | TW7013-0070 | HOSE | 1004-1190 | |
| 28 | TW7013-0080 | HOSE | 1004-1190 | |
| 29 | TW7012-0050 | TUBE | 1004-1190 | |
| 30 | TW7025-0040 | BAND | 1004-1190 | |
| 31 | TW7025-0580 | CLAMP | 1004-1190 | |
| 32 | TW7013-0060 | HOSE | 1004-1190 | |
| 33 | TW7012-0060 | TUBE | 1004-1190 | |
| 34 | TW7045-0020 | RELAY | 1004-1190 | |
| 35 | TW7025-0530 | CLAMP | 1004-1190 | |
| 36 | TW7023-0260 | PLATE | 1004-1190 | |
| 37 | TW7023-0160 | PLATE | 1004-1190 | |
| 38 | TW7043-0160 | WIRING HARNESS | 1004-1190 | |
| 39 | TW7033-0140 | GROMMET | 1004-1190 | |
| 40 | TW7022-0120 | PLATE | 1004-1190 | |
| 41 | TW7026-0100 | LINK | 1004-1190 | |
| 42 | TW7026-0110 | DUMPER | 1004-1190 | |
| 43 | TW7022-0060 | BRACKET | 1004-1190 | |
| 44 | TW7040-0040 | BLOWER ASS'Y | 1004-1190 | |
| 45 | TW7025-0500 | CLAMP | 1004-1190 | |
| 46 | TW7036-0110 | SEAT | 1004-1190 | |
| 47 | TW7022-0050 | PLATE | 1004-1190 | |
| 48 | TW7023-0450 | PLATE ASS'Y | 1004-1190 | |
| 49 | TW7033-0110 | GROMMET | 1004-1190 | |
| 50 | TW7023-0250 | STAY | 1004-1190 | |
| 51 | TW7025-0520 | CLAMP | 1004-1190 | |
| 52 | TW7025-0510 | CLAMP | 1004-1190 | |
| 53 | TW7031-0130 | DUCT | 1004-1190 | |
| 54 | TW7023-0460 | PLATE | 1004-1190 | |
| 55 | TW7031-0010 | LOUVER | 1004-1190 | |
| 56 | TW7033-0240 | GROMMET | 1004-1190 | |
| 57 | TW7040-0180 | CONTROL PANEL ASS'Y | 1004-1190 | |
| 58 | TW7041-0051 | RESISTOR | 1004-1190 | |
| 59 | 203-979-6590 | FILTER | 1004-1190 | |
| 60 | 114-X11-3850 | FILTER | 1004-1190 | |
| 61 | TW7025-0590 | STAY | 1004-1190 |
