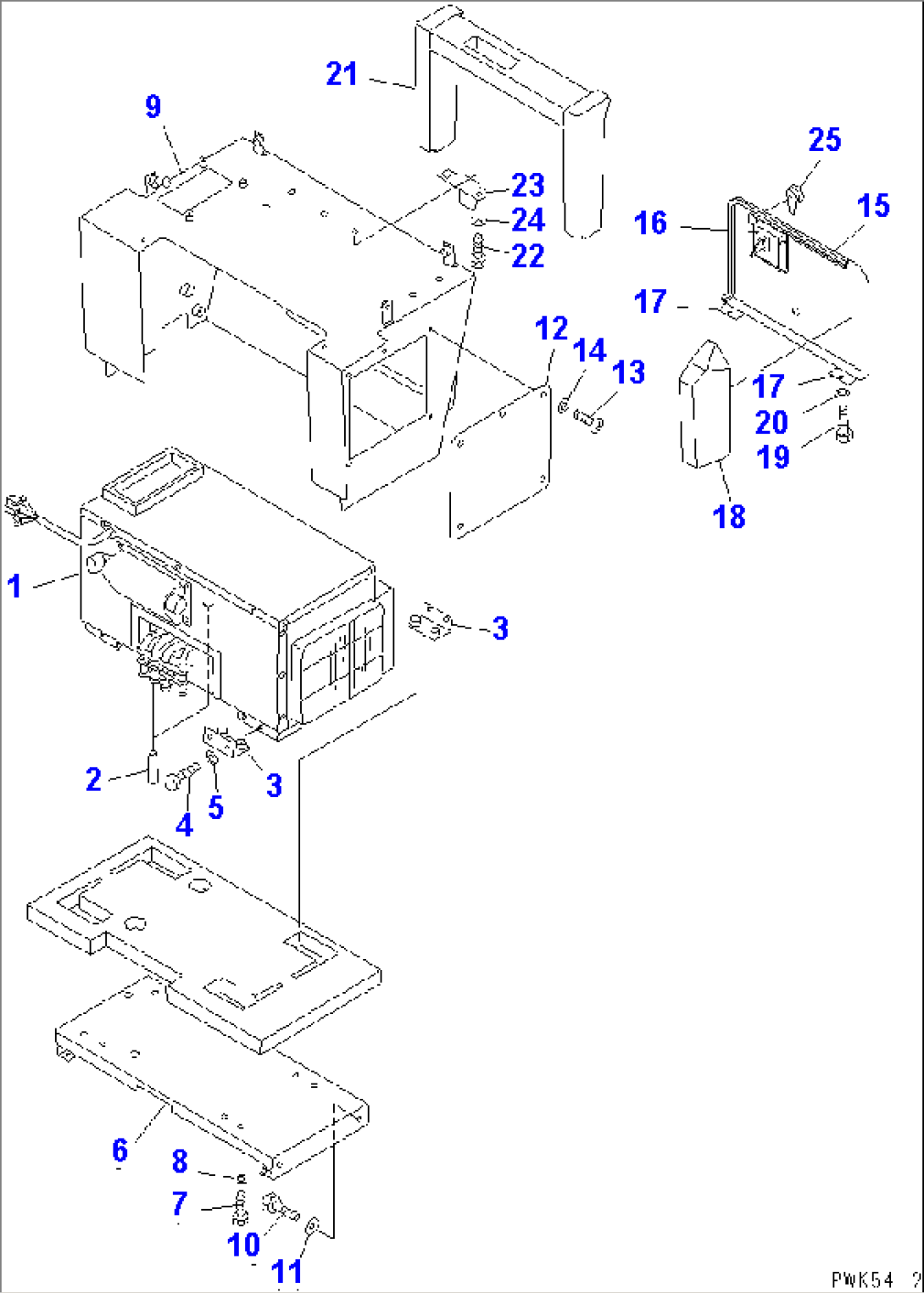

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (104-Y11-4312) | AIR CONDITIONER UNIT | 83001- | |
| 2 | 114-X11-3670 | HOSE | 83001- | |
| 3 | 114-X11-3260 | BRACKET | 83001- | |
| 4 | 01010-80816 | BOLT | 83001- | |
| 5 | 01643-30823 | WASHER | 83001- | |
| 6 | 114-X11-3250 | FRAME | 83001- | |
| 7 | 01010-80816 | BOLT | 83001- | |
| 8 | 01643-30823 | WASHER | 83001- | |
| 9 | 114-X11-3242 | COVER | 83001- | |
| 10 | 01010-81020 | BOLT | 83001- | |
| 11 | 01643-31032 | WASHER | 83001- | |
| 12 | 114-X11-3820 | COVER | 83001- | |
| 13 | 01220-40616 | SCREW | 83001- | |
| 14 | 01641-20608 | WASHER | 83001- | |
| 15 | 114-X11-3881 | COVER | 83001- | |
| 16 | 09461-00020 | LEVER ASS'Y (WELDED) | 83001- | |
| 17 | 09455-12013 | HINGE (WELDED) | 83001- | |
| 18 | 114-X11-3590 | SEAL | 83001- | |
| 19 | 01010-80616 | BOLT | 83001- | |
| 20 | 01643-30623 | WASHER | 83001- | |
| 21 | 114-X11-3381 | SEAL | 83001- | |
| 22 | 01010-81020 | BOLT | 83001- | |
| 23 | 114-X11-3830 | PLATE | 83001- | |
| 24 | 01643-31032 | WASHER | 83001- | |
| 25 | 205-60-71220 | LOCK ASS'Y | 83001- |
