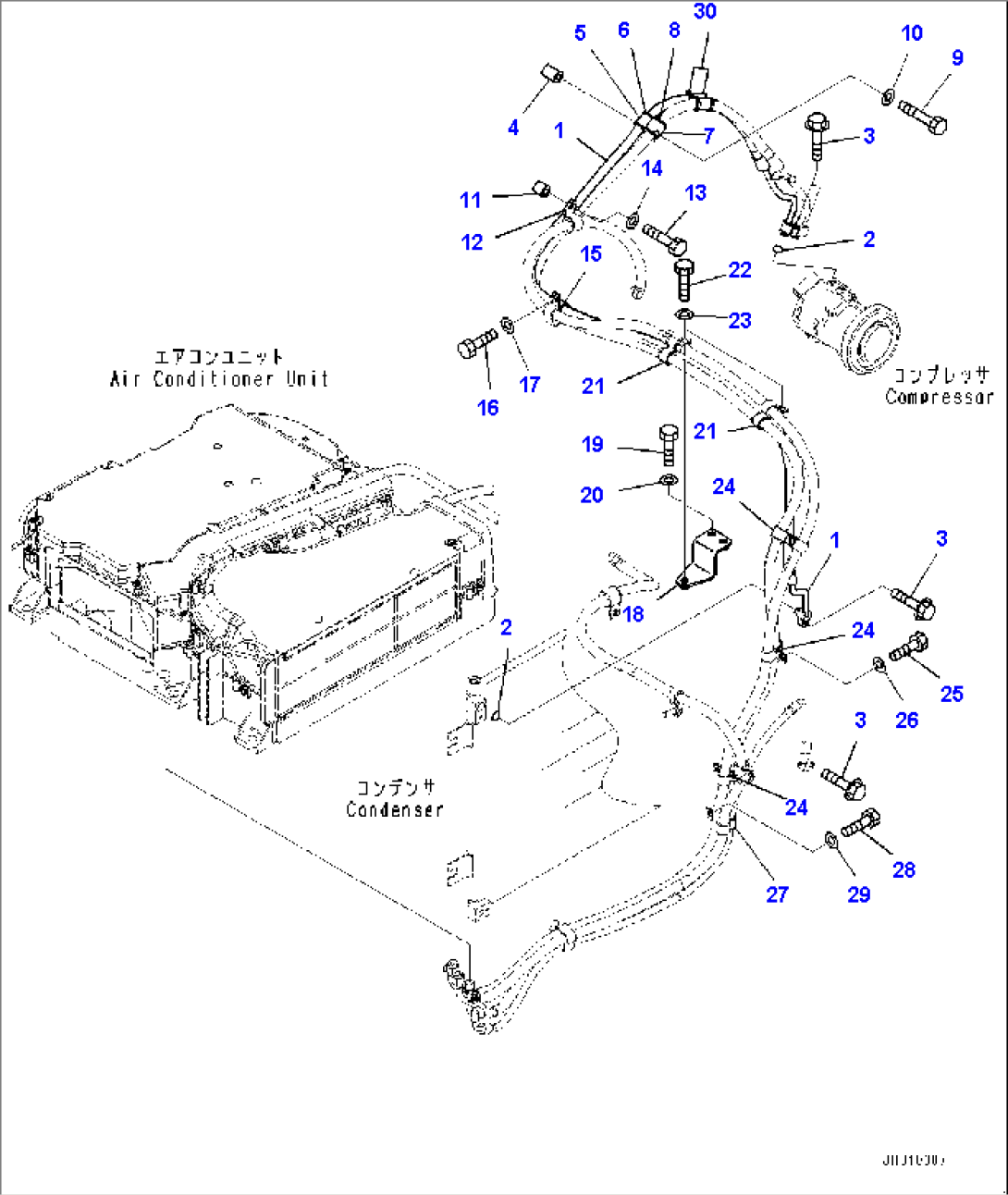

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-979-4211 | Hose | 1001-@ | |
| 2 | 20Y-979-3140 | O-ring | 1001-@ | |
| 3 | 01435-00630 | Bolt | 1001-@ | |
| 4 | 20Y-03-11220 | Collar | 1001-@ | |
| 5 | 04434-52512 | Clip | 1001-@ | |
| 6 | 07095-40318 | Cushion | 1001-@ | |
| 7 | 04434-52712 | Clip | 1001-@ | |
| 8 | 07095-40420 | Cushion | 1001-@ | |
| 9 | 01010-81265 | Bolt | 1001-2176 | |
| 10 | 01643-31232 | Washer | 1001-@ | |
| 11 | 195-33-11220 | Spacer | 1001-@ | |
| 12 | 04435-52112 | Clip | 1001-@ | |
| 13 | 01010-81250 | Bolt | 1001-@ | |
| 14 | 01643-31232 | Washer | 1001-@ | |
| 15 | 04435-52112 | Clip | 1001-@ | |
| 16 | 01010-81230 | Bolt | 1001-@ | |
| 17 | 01643-31232 | Washer | 1001-@ | |
| 18 | 22U-03-42540 | Bracket | 1001-@ | |
| 19 | 01010-81230 | Bolt | 1001-@ | |
| 20 | 01643-31232 | Washer | 1001-@ | |
| 21 | 04435-52112 | Clip | 1001-@ | |
| 22 | 01010-81230 | Bolt | 1001-@ | |
| 23 | 01643-31232 | Washer | 1001-@ | |
| 24 | 04434-52112 | Clip | 1001-@ | |
| 25 | 01010-81230 | Bolt | 1001-@ | |
| 26 | 01643-31232 | Washer | 1001-@ | |
| 27 | 20Y-810-1170 | Clip | 1001-@ | |
| 28 | 01010-81230 | Bolt | 1001-@ | |
| 29 | 01643-31232 | Washer | 1001-@ | |
| 30 | 134-03-61410 | Band | 1001-2176 |
