| Item | Part No. | Part Name | Qty | Serial No. |
| 6755-21-9910 | PUMP ASSEMBLY | |||
| 1 | (NSS) | PUMP | ||
| 2 | 07002-21423 | O-RING | ||
| 3 | 02781-0031D | NIPPLE | ||
| 4 | 02896-21009 | O-RING | ||
| 5 | 6751-21-1220 | GASKET | ||
| 6 | 6732-21-6910 | BOLT |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa270 8 s/n a28001 up
- Engine
- Ahd10 001001 exhaust gas recirculation (egr)/vgt pump supply pump
Поиск по каталогу

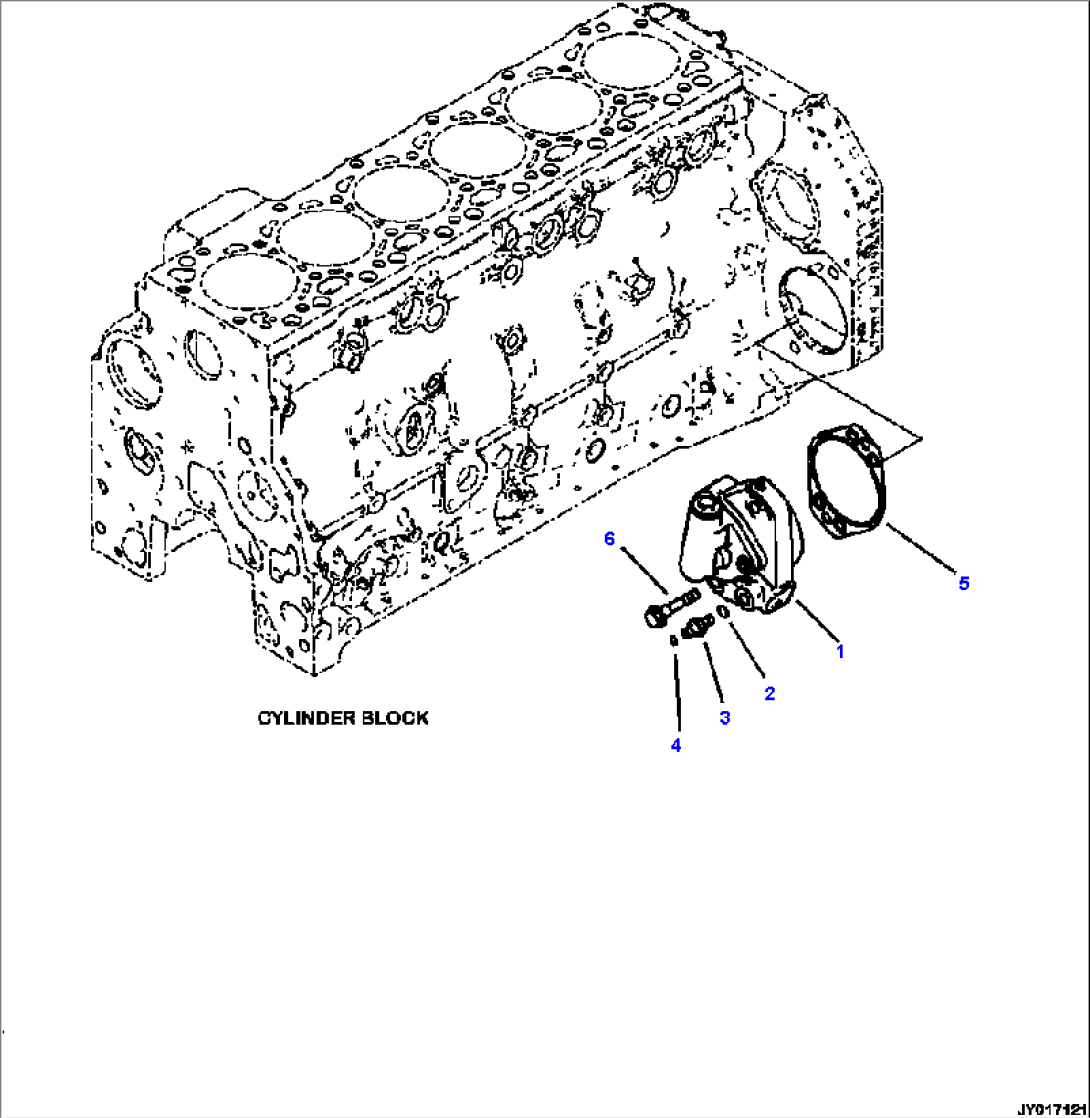

AHD10-001001 EXHAUST GAS RECIRCULATION (EGR)/VGT PUMP SUPPLY PUMP
