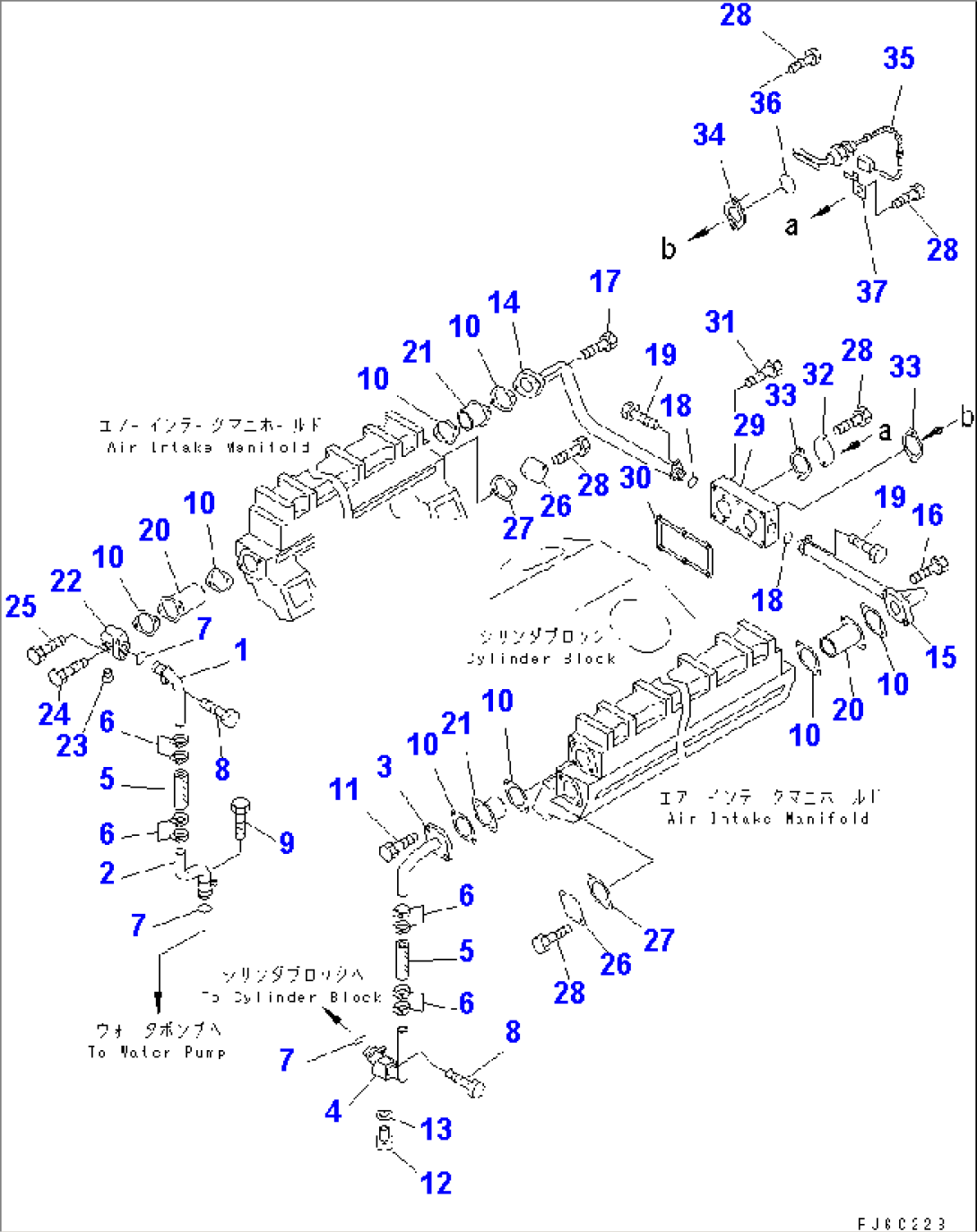

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6215-61-7620 | TUBE,FRONT, R.H. | 12378- | |
| 2 | 6215-61-7630 | TUBE,FRONT, R.H. | 12378- | |
| 3 | 6215-61-6731 | TUBE,FRONT, L.H. | 12378- | |
| 4 | 6215-61-6741 | TUBE,FRONT, L.H. | 12378- | |
| 5 | 6215-61-6690 | HOSE | 12378- | |
| 6 | 6215-11-4670 | CLAMP | 12378- | |
| 7 | 6215-61-6630 | O-RING (K1) | 12378- | |
| 8 | 01010-81020 | BOLT | 12378- | |
| 9 | 01010-81025 | BOLT | 12378- | |
| 10 | 6212-61-6662 | GASKET | 13812- | |
| 10 | \0\6212-61-6661 | GASKET (K1) | 12378-12811 | |
| 11 | 01010-81040 | BOLT | 12378- | |
| 12 | 6110-53-5910 | PLUG | 12378- | |
| 13 | 07005-01412 | SEAL, WASHER (K1) | 12378- | |
| 14 | 6215-61-6620 | TUBE,REAR, R.H. | 12378- | |
| 15 | 6215-61-6720 | TUBE,REAR, L.H. | 12378- | |
| 16 | 01010-81040 | BOLT | 12378- | |
| 17 | 01010-81040 | BOLT | 12378- | |
| 18 | 6215-61-6630 | O-RING (K1) | 12378- | |
| 19 | 01010-81020 | BOLT | 12378- | |
| 20 | 6215-61-6650 | CONNECTOR | 12378- | |
| 21 | 6212-61-6650 | CONNECTOR | 12378- | |
| 22 | 6212-61-6640 | CONNECTOR | 12378- | |
| 23 | 02720-40204 | PLUG | 12378- | |
| 24 | 01010-81065 | BOLT | 12378- | |
| 25 | 01010-81040 | BOLT | 12378- | |
| 26 | 6215-61-6670 | PLATE | 12378- | |
| 27 | 6212-61-6662 | GASKET | 13812- | |
| 27 | \0\6212-61-6661 | GASKET (K1) | 12378-13811 | |
| 28 | 01010-81025 | BOLT | 12378- | |
| 29 | 6215-21-1962 | CONNECTOR | 12378- | |
| 30 | 6215-21-1970 | GASKET (K1) | 12378- | |
| 31 | 01010-81265 | BOLT | 12378- | |
| 32 | 6215-61-6670 | PLATE | 12378- | |
| 33 | 6212-61-6662 | GASKET | 13812- | |
| 33 | \0\6212-61-6661 | GASKET (K1) | 12378-13811 | |
| 34 | 6215-61-8820 | PLATE | 12378- | |
| 35 | 600-815-8750 | HEATER,WATER | 12378- | |
| 36 | 6150-21-1190 | O-RING (K1) | 12378- | |
| 37 | 08053-01510 | CLIP | 12378- |
