| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6755-71-5110 | TUBE | ||
| 2 | 6745-71-1130 | SEAL, WASHER | ||
| 3 | 6731-74-5910 | WASHER, SEAL | ||
| 4 | 6754-71-5430 | VALVE, CHECK | ||
| 5 | 6732-71-6510 | BOLT, JOINT | ||
| 6 | 6755-71-5120 | JOINT | ||
| 7 | 6755-71-5130 | SPACER | ||
| 8 | 6736-11-4460 | BOLT |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc290lc 11 s/n a27001 up
- Engine
- Afd00 001001 fuel drain piping
Поиск по каталогу

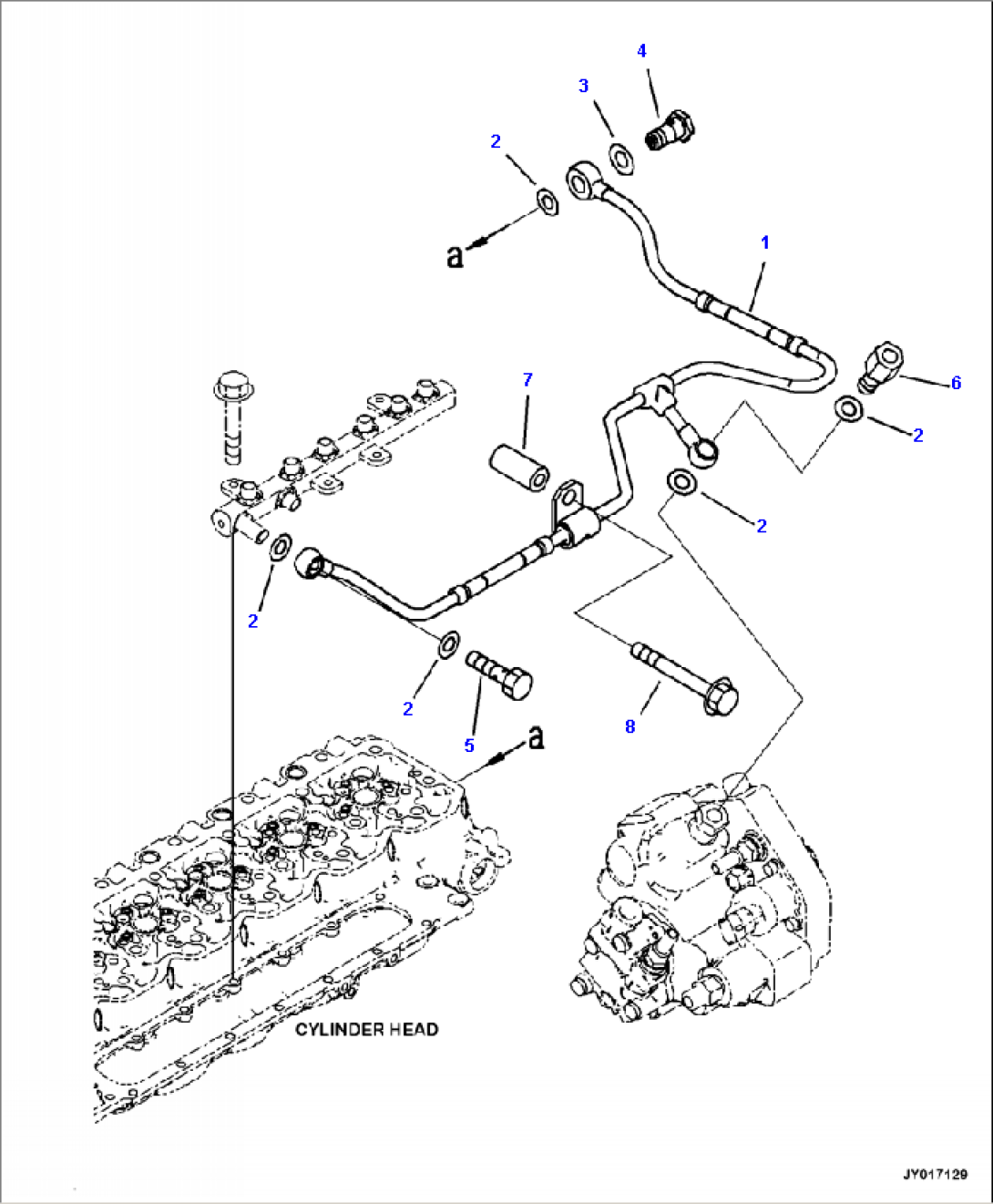

AFD00-001001 FUEL DRAIN PIPING
