| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-24330 | HOSE¤ 1030MM,BROWN | 14993- | |
| 2 | 20U-62-24340 | HOSE¤ 950MM,GREEN | 14993- | |
| 3 | 20U-62-22871 | HOSE¤ 700MM,ORANGE | 14993- | |
| 4 | 20U-62-22881 | HOSE¤ 800MM,GREY | 14993- | |
| 5 | 203-62-32440 | COVER | 14993- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc50uu 2 s/n 8001 up
- Hydraulic system
- Actuator line (swing and blade) (for power tilt mecha angle)(#14993 )
Поиск по каталогу

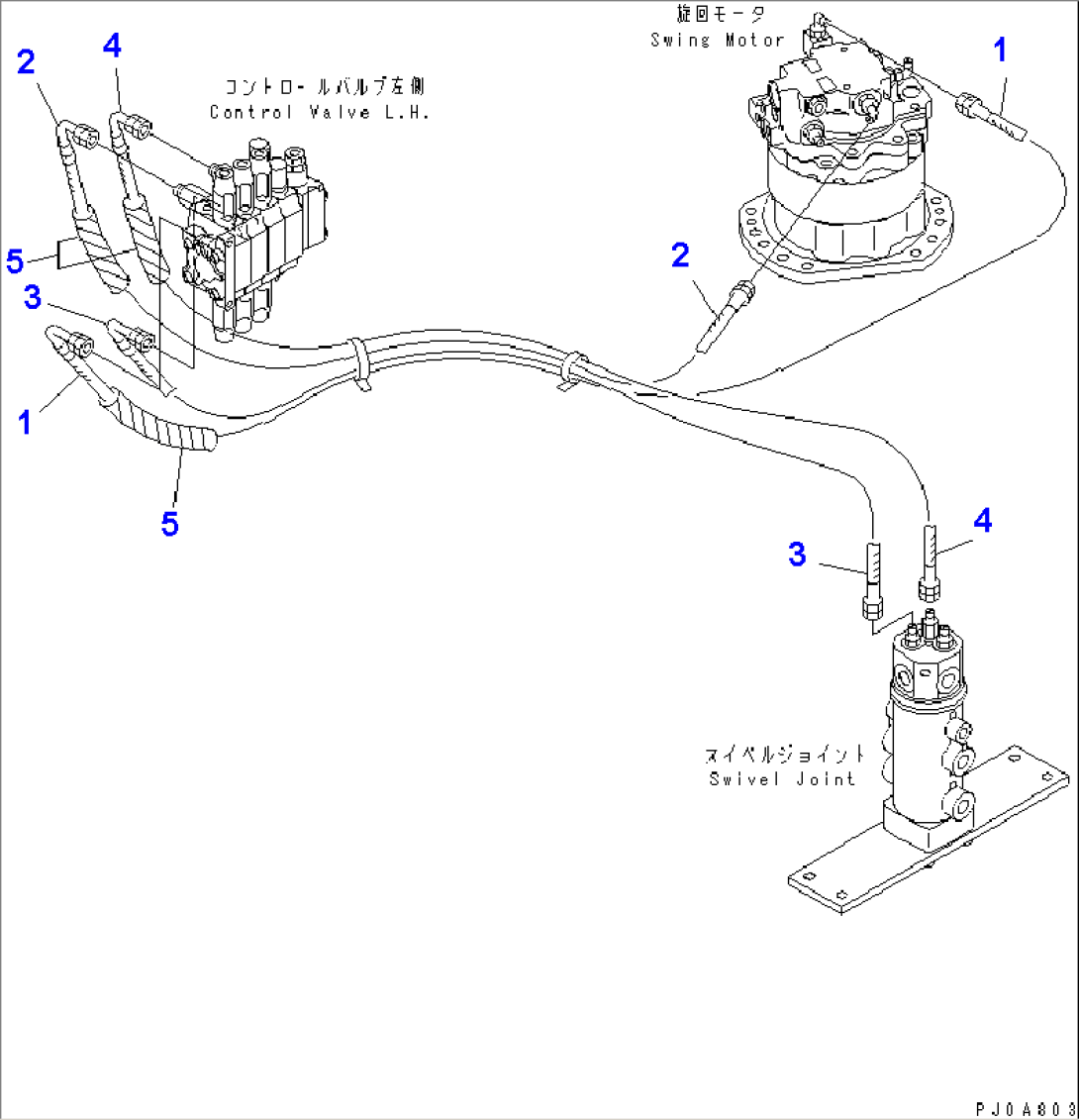

ACTUATOR LINE (SWING AND BLADE) (FOR POWER TILT MECHA ANGLE)(#14993-)
