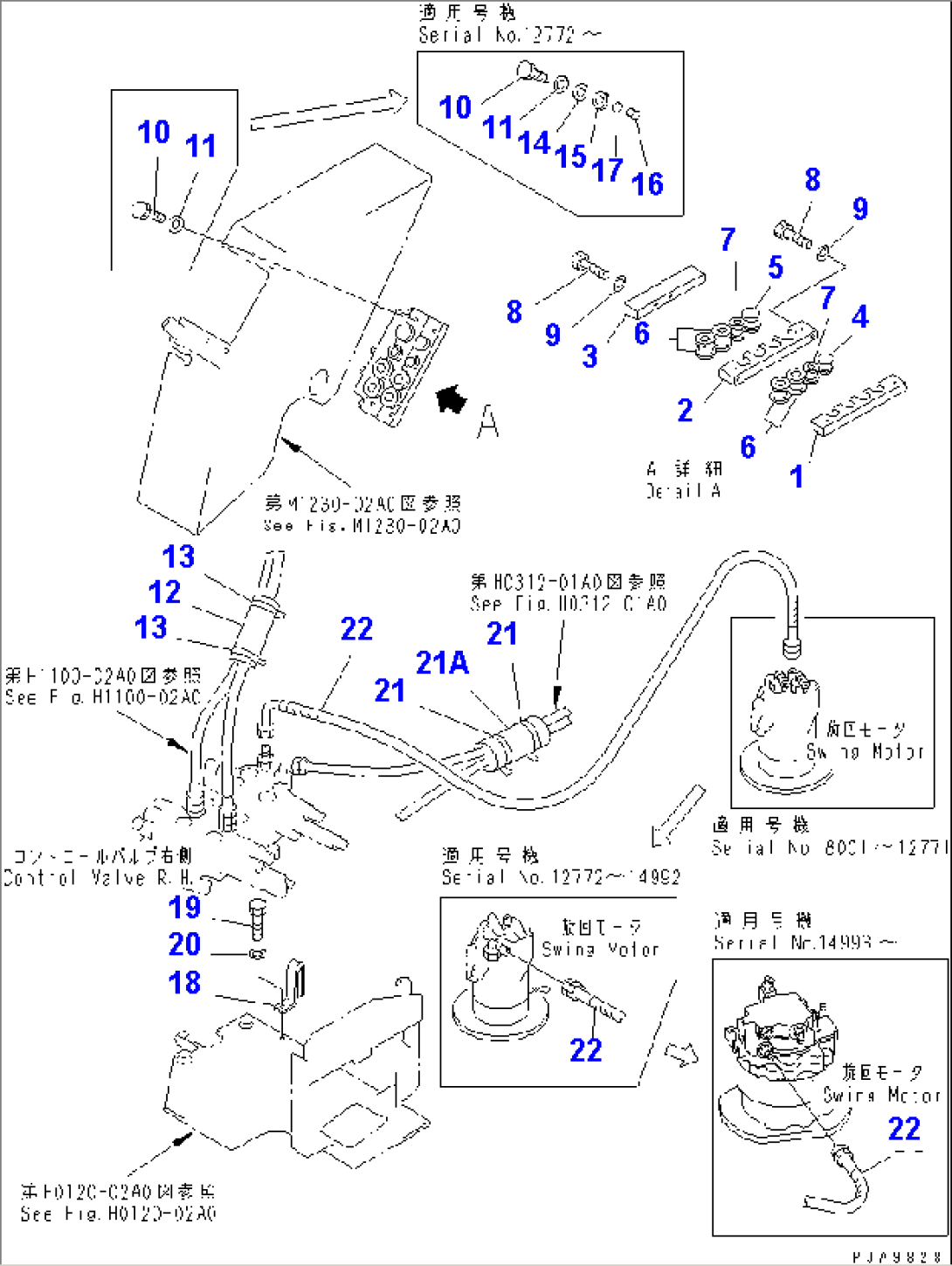

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-22911 | PLATE | 8001- | |
| 2 | 20U-62-22921 | PLATE | 8001- | |
| 3 | 20U-62-22931 | PLATE | 8001- | |
| 4 | 20U-62-22940 | CUSHION | 8001- | |
| 5 | 20U-62-22460 | CUSHION | 8001- | |
| 6 | 07095-20420 | CUSHION | 8001- | |
| 7 | 20U-62-23250 | CUSHION | 8001- | |
| 8 | 01010-80860 | BOLT | 8001- | |
| 9 | 01643-30823 | WASHER | 8001- | |
| 10 | 01010-81040 | BOLT | 12772- | |
| 01010-51025 | BOLT | 8001-12771 | ||
| 11 | 01643-31032 | WASHER | 8001- | |
| 12 | 20U-62-26170 | SEAT | 14993- | |
| 203-62-41150 | COVER | 8001-14992 | ||
| 13 | 08034-20823 | BAND | 14993- | |
| 08034-00823 | BAND | 8001-14992 | ||
| 14 | 21W-62-23110 | WASHER | 12772- | |
| 15 | 21W-62-22970 | SHEET | 12772- | |
| 16 | 21W-62-22810 | SPACER | 12772- | |
| 17 | 07000-02015 | O-RING | 12772- | |
| 18 | 20U-62-22951 | PLATE | 8001- | |
| 19 | 01010-81020 | BOLT | 8001- | |
| 20 | 01643-31032 | WASHER | 8001- | |
| 21 | 08034-00823 | BAND | 8001- | |
| 21A | 20U-62-11760 | VINYL | 8001- | |
| 22 | 20U-62-25731 | HOSE¤ 750MM | 14993- | |
| 20U-62-25730 | HOSE | 12772-14992 | ||
| 20U-62-22960 | HOSE | 8001-12771 |
