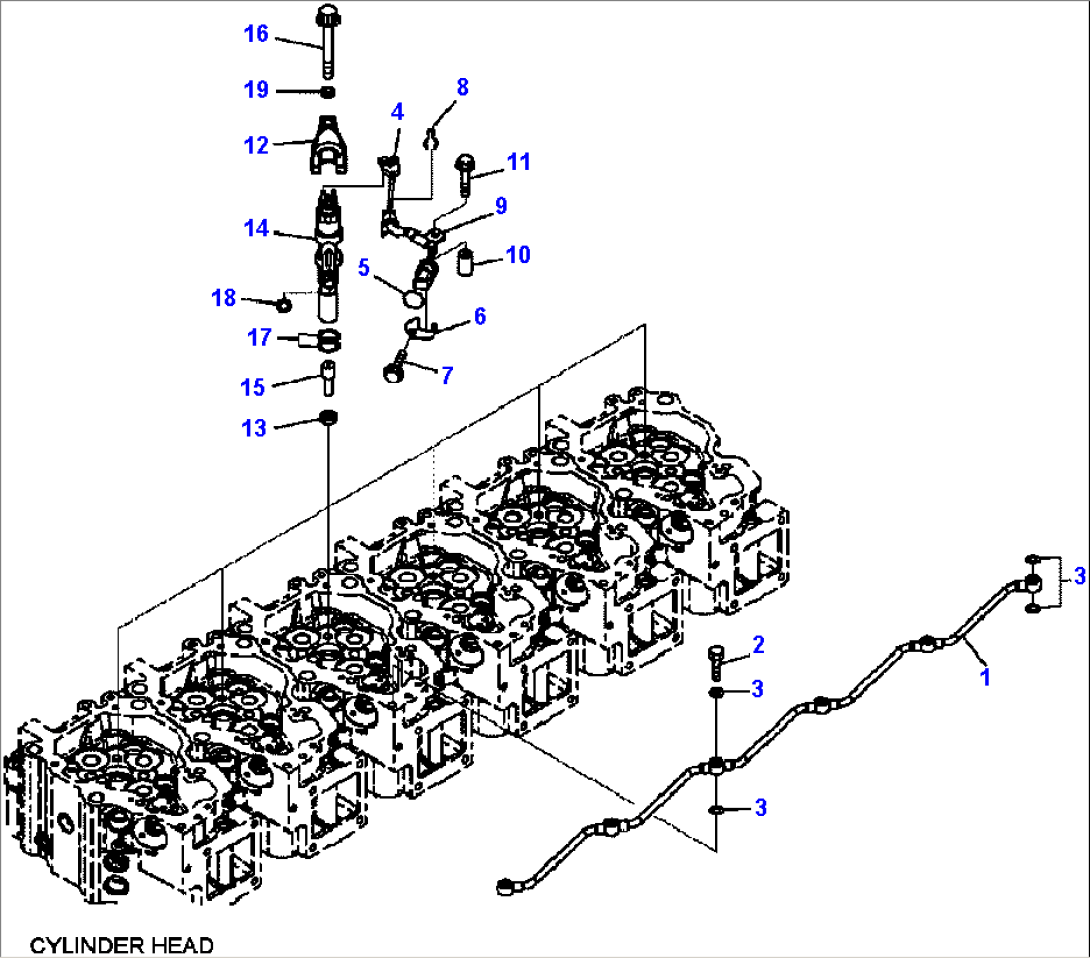

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6217-71-7110 | TUBE | ||
| 2 | 6934-72-7190 | BOLT, JOINT | ||
| 3 | 07005-01012 | GASKET | ||
| 4 | 6261-81-9280 | WIRING HARNESS | ||
| OR | ||||
| 4 | 6217-81-9252 | WIRING HARNESS | ||
| 5 | 07000-E2018 | O-RING | ||
| 6 | 6217-71-5320 | PLATE | ||
| 7 | 01435-00610 | BOLT | ||
| 8 | 6217-71-5340 | CLAMP | ||
| 9 | 6217-71-1150 | CLAMP | ||
| 10 | 6217-71-1170 | SPACER | ||
| 11 | 01435-00635 | BOLT | ||
| 12 | 6217-71-1161 | HOLDER | ||
| 13 | 6261-71-6150 | GASKET | ||
| 6261-11-3100 | INJECTOR ASSEMBLY | |||
| 14 | (NSS) | HOLDER | ||
| 15 | (NSS) | NOZZLE | ||
| 16 | 01437-01070 | BOLT | ||
| 17 | 6219-71-1150 | O-RING | ||
| 18 | 6219-71-1160 | O-RING | ||
| 19 | 6217-71-1140 | WASHER | ||
| F1 - FOR MACHINES WITH ENGINE SERIAL NUMBERS 535786 AND UP. | ||||
| F2 - FOR MACHINES WITH ENGINE SERIAL NUMBERS 530001-535785. |
