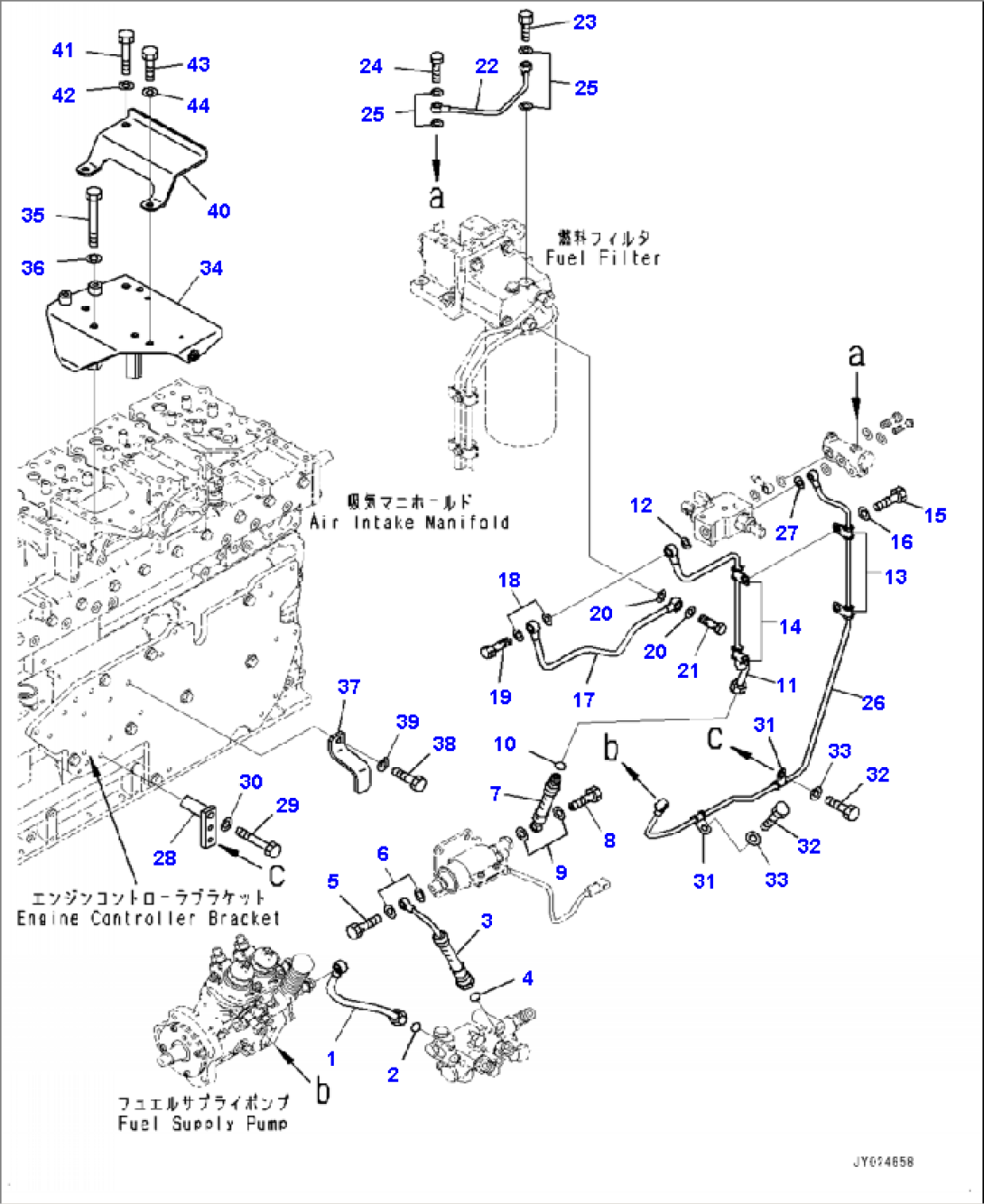

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6252-71-5320 | TUBE | ||
| 2 | 02896-11012 | O-RING | ||
| 3 | 6252-71-5310 | HOSE | ||
| 4 | 02896-11012 | O-RING | ||
| 5 | 07206-30812 | BOLT, JOINT | ||
| 6 | 07005-01212 | SEAL, WASHER | ||
| 7 | 6252-71-5790 | HOSE | ||
| 8 | 07206-30812 | BOLT, JOINT | ||
| 9 | 07005-01212 | SEAL, WASHER | ||
| 10 | 02896-11009 | O-RING | ||
| 11 | 6252-71-5760 | TUBE | ||
| 12 | 07005-01412 | SEAL, WASHER | ||
| 13 | 600-052-3080 | CLIP | ||
| 14 | 600-052-3100 | CLIP | ||
| 15 | 01010-81025 | BOLT | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 6252-71-5850 | TUBE | ||
| 18 | 07005-01412 | SEAL, WASHER | ||
| 19 | 6262-71-7290 | BOLT, JOINT | ||
| 20 | 07005-01412 | SEAL, WASHER | ||
| 21 | 7700-45-1710 | BOLT, JOINT | ||
| 22 | 6252-71-5450 | TUBE | ||
| 23 | 6245-71-5960 | BOLT, JOINT | ||
| 24 | 07206-30508 | BOLT, JOINT | ||
| 25 | 07005-00812 | SEAL, WASHER | ||
| 26 | 6252-71-5750 | TUBE | ||
| 27 | 07005-01012 | SEAL, WASHER | ||
| 28 | 6252-71-5820 | BRACKET | ||
| 29 | 01010-81080 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 600-052-3080 | CLIP | ||
| 32 | 01010-81025 | BOLT | ||
| 33 | 01643-31032 | WASHER | ||
| 34 | 6253-71-5720 | COVER | ||
| 35 | 01011-81010 | BOLT | ||
| 36 | 01643-31032 | WASHER | ||
| 37 | 6252-71-5710 | COVER | ||
| 38 | 01010-81025 | BOLT | ||
| 39 | 01643-31032 | WASHER | ||
| 40 | 6253-71-5770 | COVER | ||
| 41 | 01010-81075 | BOLT | ||
| 42 | 01643-31032 | WASHER | ||
| 43 | 01010-81025 | BOLT | ||
| 44 | 01643-31032 | WASHER |
