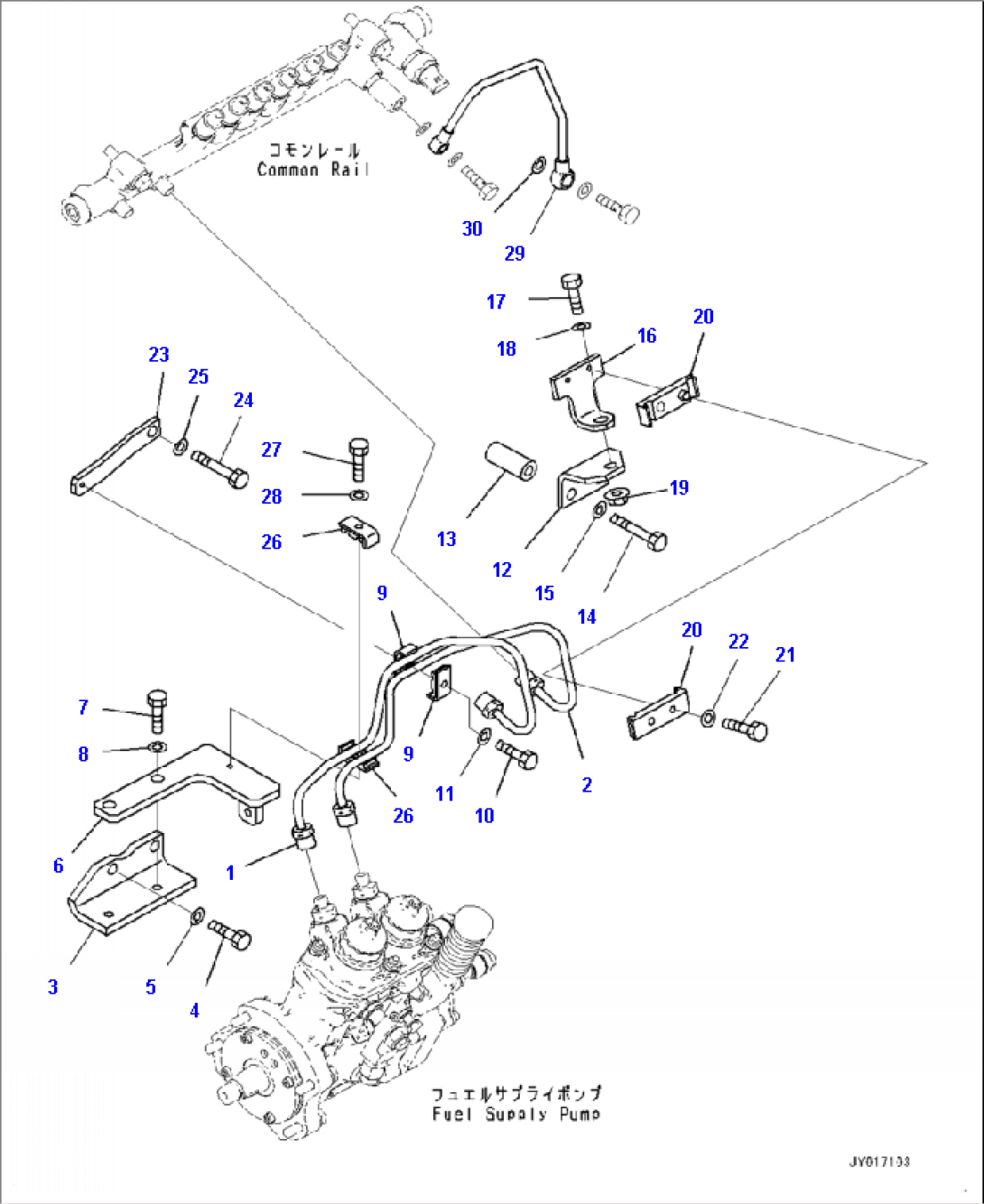

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6252-71-4110 | TUBE | ||
| 2 | 6252-71-4120 | TUBE | ||
| 3 | 6252-71-5180 | BRACKET | ||
| 4 | 01010-81030 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 6252-71-5190 | BRACKET | ||
| 7 | 01010-81030 | BOLT | ||
| 8 | 01643-31032 | WASHER | ||
| 9 | 6162-75-5820 | CLAMP | ||
| 10 | 01010-80630 | BOLT | ||
| 11 | 01643-30623 | WASHER | ||
| 12 | 6252-71-4130 | BRACKET | ||
| 13 | 6152-51-5520 | SPACER | ||
| 14 | 01010-81075 | BOLT | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 6252-71-4140 | BRACKET | ||
| 17 | 01010-81030 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 01584-01008 | NUT | ||
| 20 | 6217-71-5211 | CLAMP | ||
| 21 | 01010-80630 | BOLT | ||
| 22 | 01643-30623 | WASHER | ||
| 23 | 6251-71-5810 | BRACKET | ||
| 24 | 01010-81050 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 6162-75-5820 | CLAMP | ||
| 27 | 01010-80630 | BOLT | ||
| 28 | 01643-30623 | WASHER | ||
| 29 | 6253-71-5390 | TUBE | ||
| 30 | 07005-01412 | SEAL, WASHER |
