| Item | Part No. | Part Name | Qty | Serial No. |

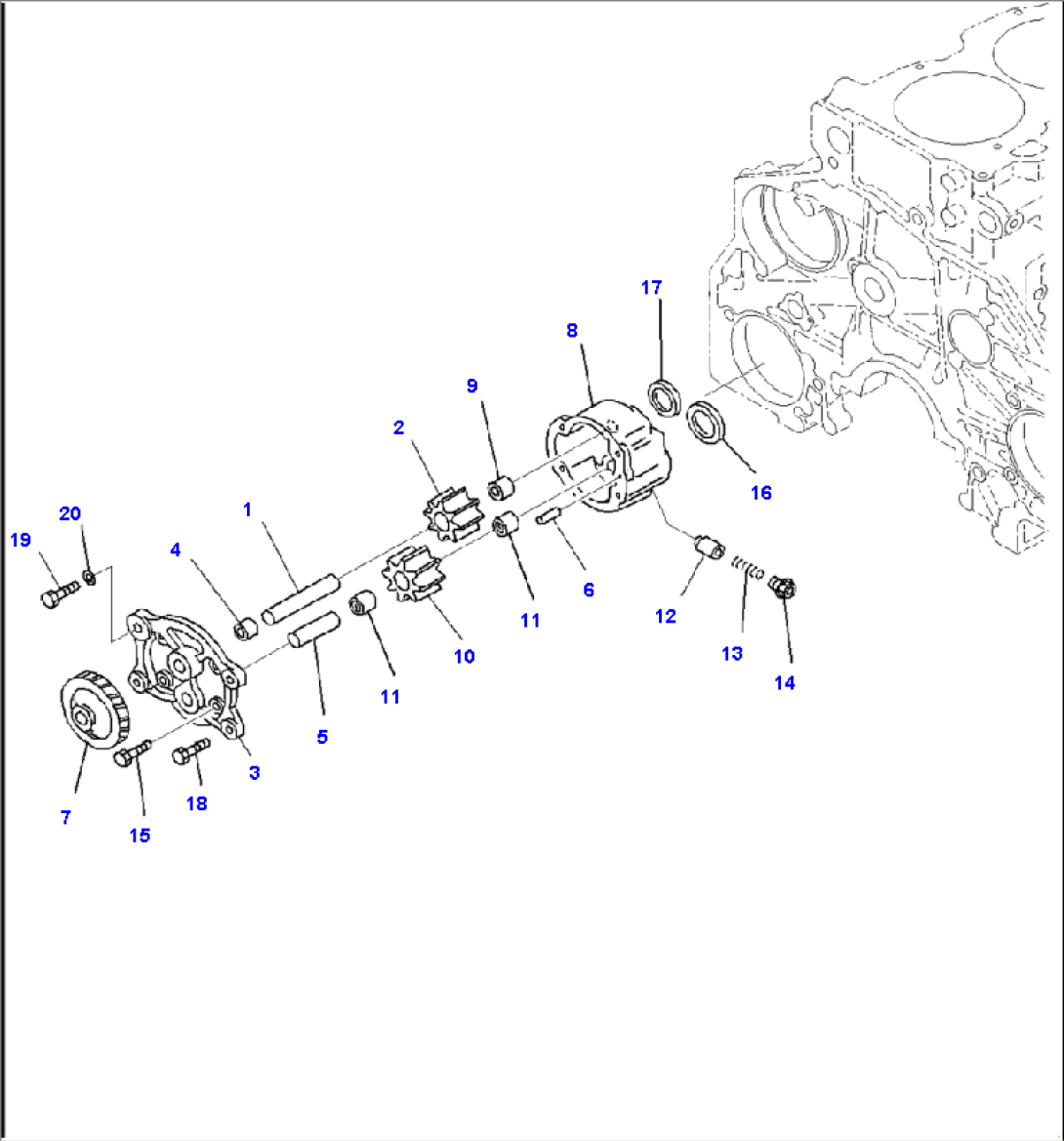

| 6253-51-1000 | PUMP ASSEMBLY, OIL | |||
| (NSS) | SHAFT ASSEMBLY | |||
| 1 | (NSS) | SHAFT | ||
| 2 | (NSS) | GEAR | ||
| (NSS) | COVER ASSEMBLY | |||
| (NSS) | COVER ASSEMBLY | |||
| 3 | (NSS) | COVER | ||
| 4 | (NSS) | BUSHING | ||
| 5 | (NSS) | SHAFT | ||
| 6 | (NSS) | PIN | ||
| 7 | (NSS) | GEAR | ||
| (NSS) | CASE ASSEMBLY | |||
| 8 | (NSS) | CASE | ||
| 9 | (NSS) | BUSHING | ||
| (NSS) | GEAR ASSEMBLY | |||
| 10 | (NSS) | GEAR | ||
| 11 | (NSS) | BUSHING | ||
| 12 | PML136-02800 | VALVE | ||
| 13 | PML137-06010 | SPRING | ||
| 14 | PML139-01300 | PLUG | ||
| 15 | 01435-00820 | BOLT | ||
| 16 | 6150-51-1710 | RING | ||
| 17 | 6150-51-1720 | RING | ||
| 18 | 01010-81025 | BOLT | ||
| 19 | 01010-81035 | BOLT | ||
| 20 | 01643-31032 | WASHER |
