| Item | Part No. | Part Name | Qty | Serial No. |

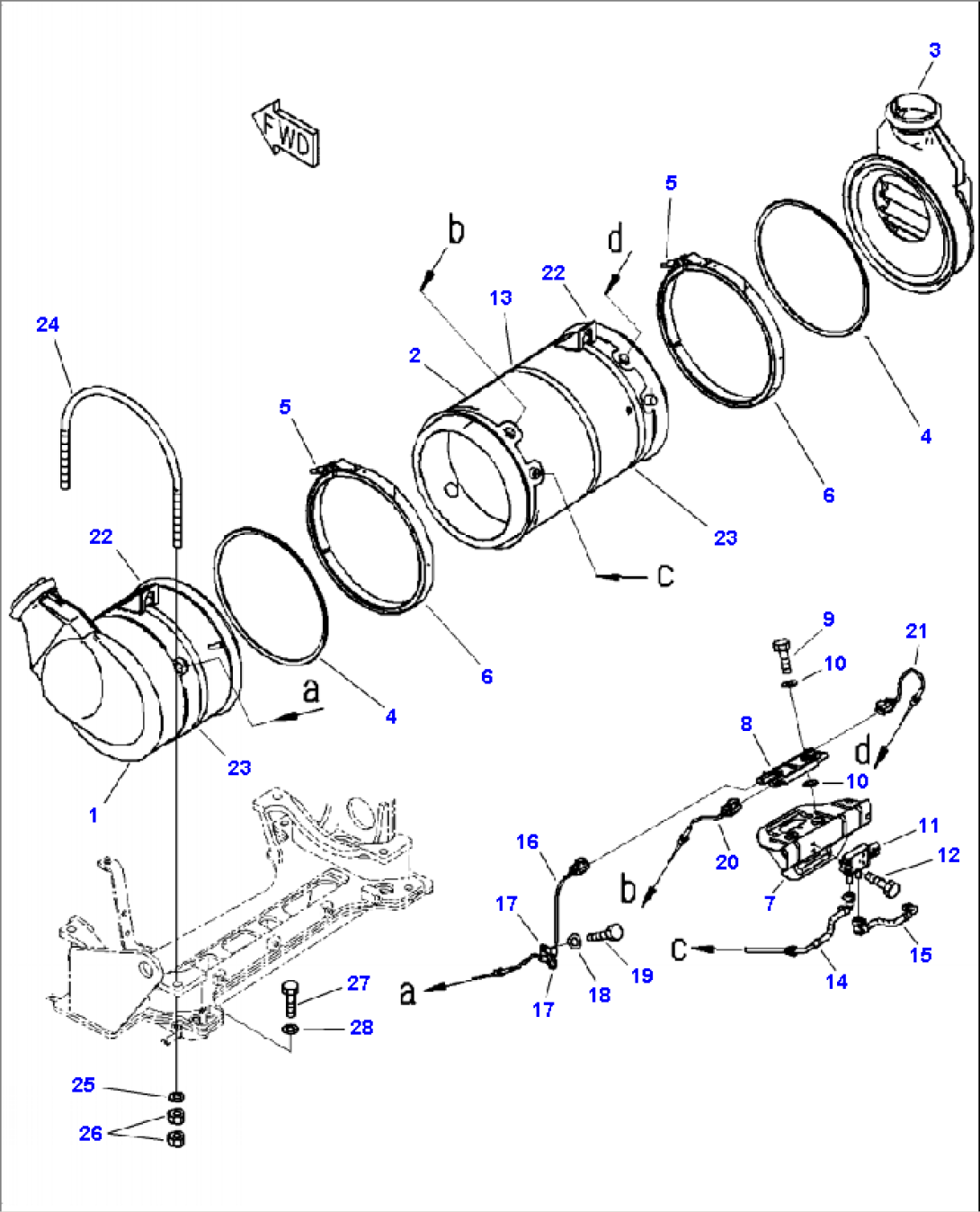

| 6525-01-1120 | DIESEL PARTICULATE FILTER ASSEMBLY | |||
| 1 | 6525-21-1050 | BODY | ||
| 2 | 6525-31-1010 | BODY | ||
| 3 | 6525-41-1020 | BODY | ||
| 4 | 6525-91-1010 | GASKET | ||
| 6525-91-1020 | CLAMP ASSEMBLY | |||
| 5 | 6524-91-1130 | NUT | ||
| 6 | 6525-91-1030 | CLAMP | ||
| 6524-81-1011 | SENSOR ASSEMBLY | |||
| 7 | 6524-81-1051 | BRACKET | ||
| 8 | 6520-81-1020 | CONNECTOR | ||
| 9 | 6524-81-1060 | BOLT | ||
| 10 | 6524-81-1070 | WASHER | ||
| 11 | 6520-81-1010 | SENSOR | ||
| 12 | 6524-81-1060 | BOLT | ||
| 13 | 6525-91-4010 | BAND | ||
| 14 | 6525-81-1020 | HOSE | ||
| 15 | 6525-81-1010 | HOSE | ||
| 16 | 6520-81-1040 | SENSOR | ||
| 17 | 6524-91-1050 | CLIP | ||
| 18 | 6524-91-1080 | WASHER | ||
| 19 | 01020-00616 | BOLT, STAINLESS | ||
| 20 | 6520-81-1030 | SENSOR | ||
| 21 | 6520-81-1030 | SENSOR | ||
| 22 | 6524-91-4011 | HANGER | ||
| 23 | 6525-91-4010 | BAND | ||
| 24 | 14X-01-61281 | BOLT | ||
| 25 | 14X-01-61290 | WASHER | ||
| 26 | 01581-01613 | NUT, STAINLESS | ||
| 27 | 01010-81245 | BOLT | ||
| 28 | 01643-31232 | WASHER |
