| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81220 | BOLT | ||
| 2 | 201643-31232 | WASHER | ||
| 3 | 207-01-41312 | BRACKET | ||
| 4 | 01010-81235 | BOLT | ||
| 5 | 01643-31232 | WASHER | ||
| 6 | 6746-11-5450 | COVER | ||
| 7 | 01010-81020 | BOLT | ||
| 8 | 01643-31032 | WASHER | ||
| 9 | 6746-11-5610 | BRACKET |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc360lc 10 s/n a32001 up
- Engine
- A1610 001001 komatsu diesel particulate filter (kdpf) mounting
Поиск по каталогу

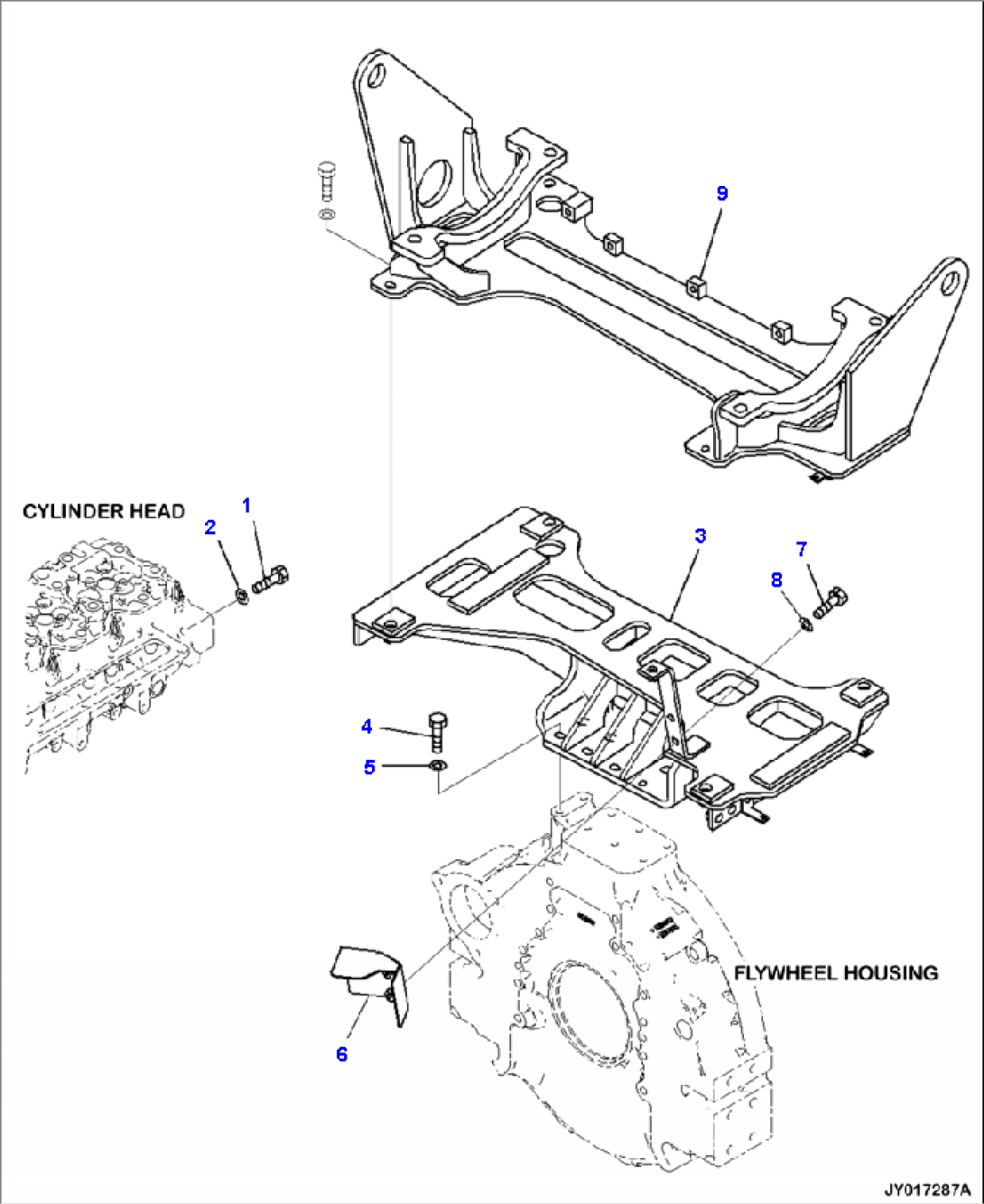

A1610-001001 KOMATSU DIESEL PARTICULATE FILTER (KDPF) MOUNTING
