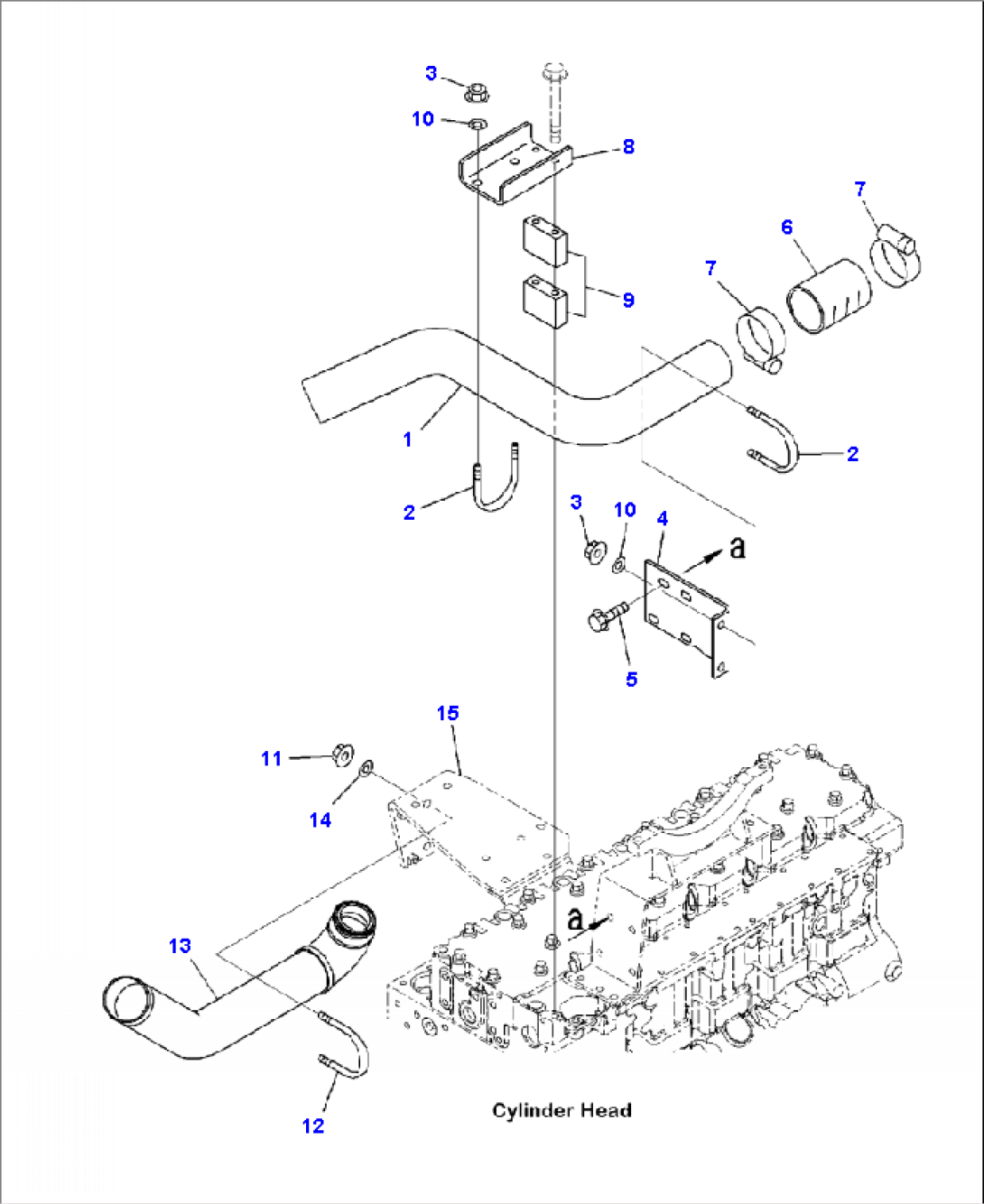

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-01-41511 | TUBE | ||
| 2 | 07283-37663 | CLIP | ||
| 3 | 01595-01008 | NUT | ||
| 4 | 6745-11-4220 | BRACKET | ||
| 5 | 01435-01025 | BRACKET | ||
| 6 | 6745-11-4260 | HOSE | ||
| 7 | 07299-00080 | CLAMP | ||
| 8 | 6745-11-5280 | BRACKET | ||
| 9 | 6745-11-5290 | PLATE | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 01595-01008 | NUT | ||
| 12 | 07283-37663 | CLIP | ||
| 13 | 424-01-41531 | TUBE | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | BRACKET (SEE FIG. A1215-A2A4) |
