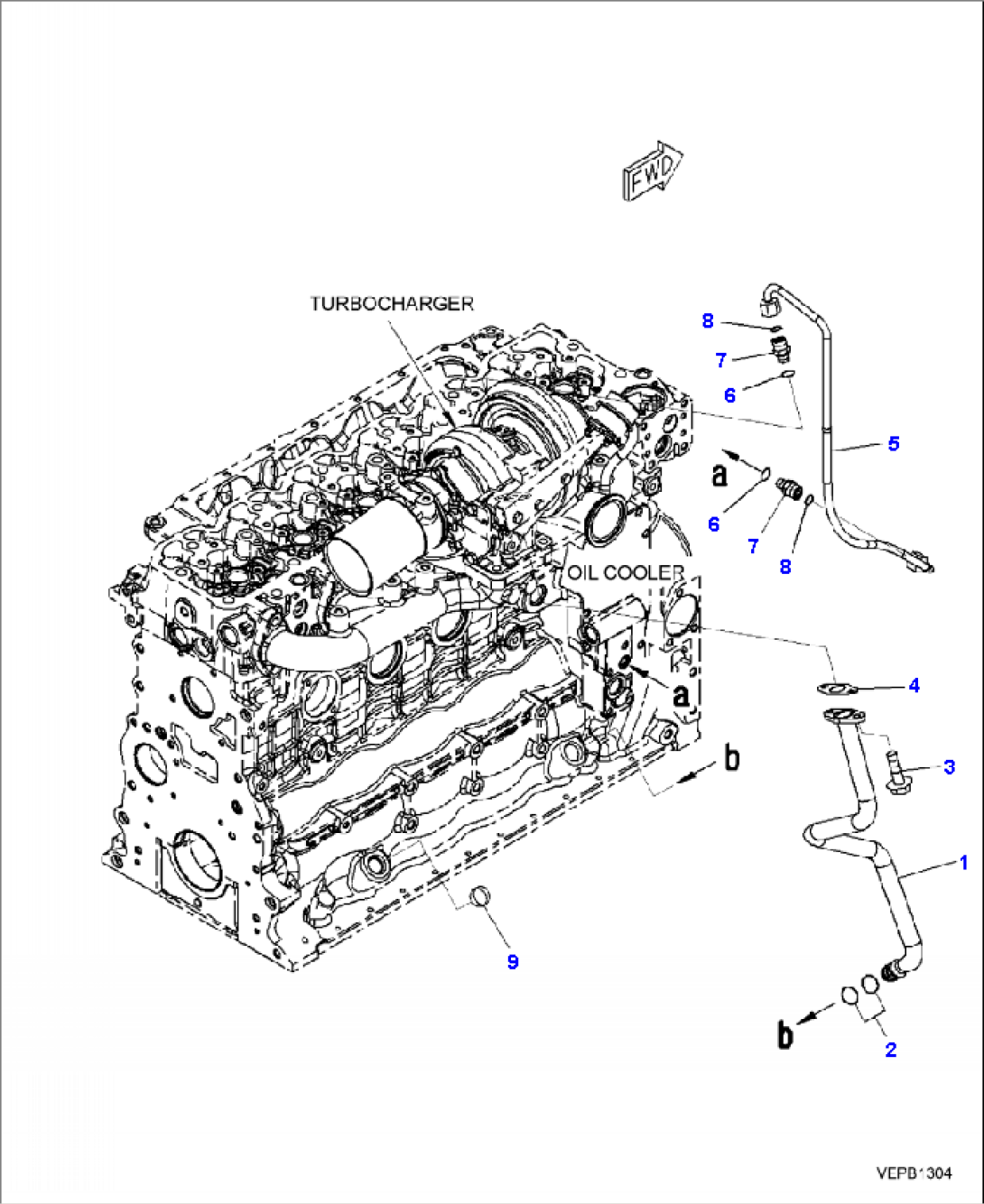

| Item | Part No. | Part Name | Qty | Serial No. |
| 6754-51-8100 | TUBE, TURBOCHARGER OIL DRAIN CONNECTION | |||
| 1 | (NSS) | TUBE, OIL DRAIN CONNECTION | ||
| 2 | 6732-51-8330 | SEAL, O-RING | ||
| 3 | 6732-71-3220 | BOLT | ||
| 4 | GASKET, OIL DRAIN (SEE FIG. A1120-A2D2) | |||
| 5 | 6754-51-8210 | HOSE, FLEXIBLE | ||
| 6745-61-8160 | CONNECTOR ASSEMBLY, MALE | |||
| 6 | 6737-51-8770 | SEAL, O-RING | ||
| 7 | (NSS) | CONNECTOR | ||
| 8 | 6732-81-8860 | SEAL, O-RING | ||
| 9 | 6735-21-5530 | PLUG |
