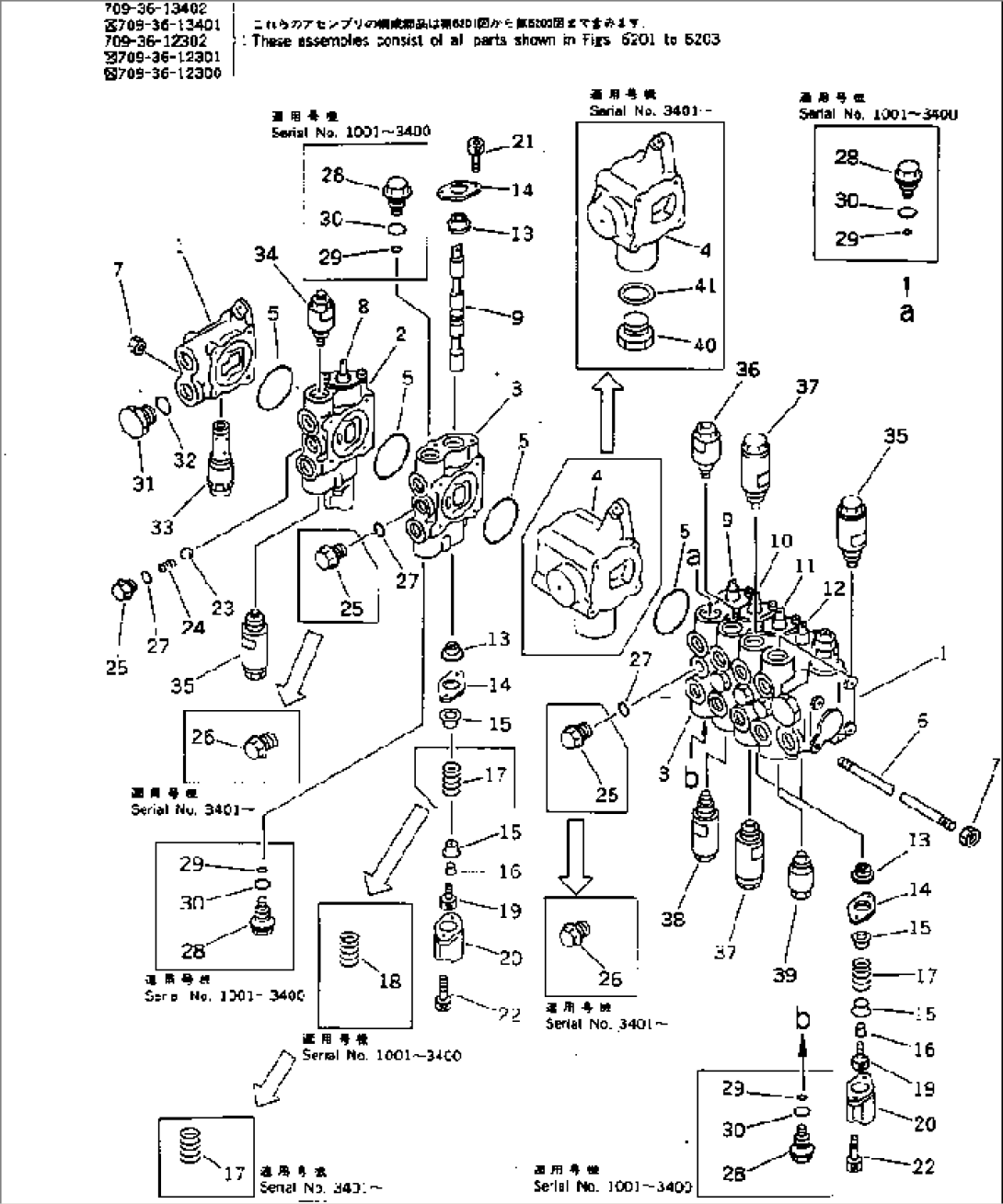

| Item | Part No. | Part Name | Qty | Serial No. |
| 709-36-13402 | VALVE ASS'Y | | 3401- |
| (\2\709-36-13401) | VALVE ASS'Y | | (3401-4049) |
| 709-36-12302 | VALVE ASS'Y | | 1001-3400 |
| (\2\709-36-12301) | VALVE ASS'Y | | (2729-.) |
| (\2\709-36-12300) | VALVE ASS'Y | | (1001-2728) |
| 1 | \6\ | BLOCK | | 1001- |
| 2 | \6\ | BLOCK | | 1001- |
| 3 | \6\ | BLOCK | | 3401- |
| 3 | \6\ | BLOCK | | 1001-3400 |
| 4 | \6\ | BLOCK | | 3401- |
| 4 | \6\ | BLOCK | | 1001-3400 |
| 5 | 07000-12055 | O-RING | | 1001- |
| 6 | 709-36-11510 | STUD | | 3401- |
| 6 | 709-37-11510 | STUD | | 1001-3400 |
| 7 | 01580-10806 | NUT | | 1001- |
| 8 | \6\ | SPOOL,ARM | | 1001- |
| 9 | \6\ | SPOOL,TRAVEL | | 1001- |
| 10 | \6\ | SPOOL,BUCKET | | 1001- |
| 11 | \6\ | SPOOL,BOOM | | 1001- |
| 12 | \6\ | SPOOL,BOOM OFFSET | | 1001- |
| 13 | 709-32-11530 | SEAL,DUST | | 1001- |
| 14 | 709-32-11540 | PLATE | | 1001- |
| 15 | 709-32-11550 | RETAINER | | 1001- |
| 16 | 709-32-11560 | COLLAR | | 1001- |
| 17 | 709-32-11590 | SPRING | | 3401- |
| 17 | 709-32-11590 | SPRING | | 1001-3400 |
| 17 | 709-32-11590 | SPRING | | 1001-3400 |
| 18 | 709-32-11580 | SPRING | | 1001-3400 |
| 19 | 01252-30620 | BOLT | | 1001- |
| 20 | 709-32-11570 | COVER | | 1001- |
| 21 | 01252-30610 | BOLT | | 1001- |
| 22 | 01252-30616 | BOLT | | 1001- |
| 23 | 04260-01270 | BALL | | 1001- |
| 24 | 709-32-11820 | SPRING | | 1001- |
| 25 | 709-32-11810 | PLUG | | 3401- |
| 25 | 709-32-11810 | PLUG | | 1001-3400 |
| 26 | 709-32-11930 | PLUG | | 3401- |
| 27 | 07002-11823 | O-RING | | 1001- |
| 28 | 709-32-11830 | PLUG | | 1001-3400 |
| 29 | 709-32-11840 | O-RING | | 1001-3400 |
| 30 | 07002-02034 | O-RING | | 1001-3400 |
| 31 | 07040-12012 | PLUG | | 1001- |
| 32 | 07002-02034 | O-RING | | 1001- |
| 33 | (700-26-52000) | VALVE ASS'Y,RELIEF | | 1001- |
| 34 | (709-30-65800) | VALVE ASS'Y,SAFETY | | 1001- |
| 35 | (709-30-63602) | VALVE ASS'Y,SUCTION AND SAFETY | | 1001- |
| 35 | (\2\709-30-63200) | VALVE ASS'Y,SUCTION AND SAFETY | | (1001-2728) |
| 36 | (709-30-65800) | VALVE ASS'Y,SAFETY | | 3401- |
| 36 | (\2\709-30-65900) | VALVE ASS'Y,SAFETY | | (3401-4049) |
| 36 | (709-30-65800) | VALVE ASS'Y,SAFETY | | 1001-3400 |
| 36 | (\2\709-30-65900) | VALVE ASS'Y,SAFETY | | (1001-.) |
| 37 | (709-30-63702) | VALVE ASS'Y,SUCTION AND SAFETY | | 1001- |
| 37 | (\2\709-30-63300) | VALVE ASS'Y,SUCTION AND SAFETY | | (1001-2728) |
| 38 | (709-30-64500) | VALVE ASS'Y,SUCTION AND SAFETY | | 1001- |
| 38 | (\2\709-30-62400) | VALVE ASS'Y,SUCTION AND SAFETY | | (1001-2728) |
| 39 | (709-30-61100) | VALVE ASS'Y,SUCTION | | 1001- |
| 40 | 700-22-11370 | PLUG | | 3401- |
| 41 | 07002-02434 | O-RING | | 3401- |
