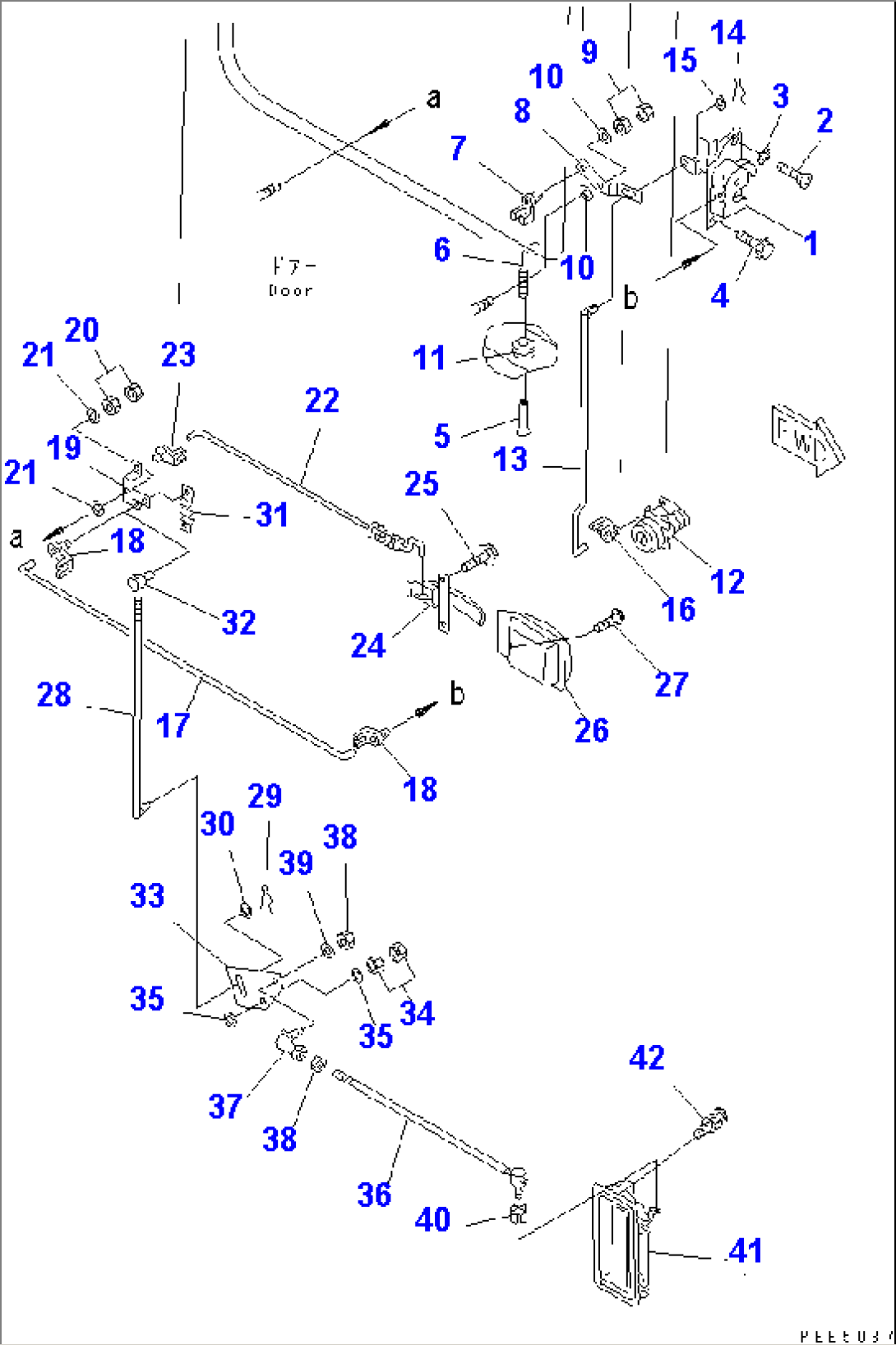

2-PERSONS CAB (DOOR¤ R.H. LOCK)

Item	Part No.	Part Name	Qty	Serial No.
	(416-923-2040)	CAB ASS'Y		54001-
	(416-923-2020)	CAB ASS'Y		55001-
	(416-923-2060)	CAB ASS'Y		55001-

	(419-923-2050)	CAB ASS'Y		53001-53999
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-31A2 TO K0210-47A2.
	(419-923-2500)	DOOR ASS'Y,R.H.		53001-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-41A2 TO K0210-43A2.
1	421-56-11540	LOCK,R.H.		53001-
2	01224-40616	SCREW		53001-
3	421-54-16440	WASHER		53001-
4	01435-00612	BOLT		53001-
5	419-54-16880	KNOB		53001-
6	418-923-2550	ROD		53001-
7	421-56-11611	HOOK		53001-
8	418-923-2540	LEVER,R.H.		53001-
9	01580-10605	NUT		53001-
10	01641-20608	WASHER		53001-
11	08037-01008	GROMMET		53001-
12	427-56-11790	LOCK ASS'Y		53001-
13	418-923-2560	ROD		53001-
14	04052-10530	PIN,SNAP		53001-
15	01641-20508	WASHER		53001-
16	421-56-11611	HOOK		53001-
17	418-923-2580	ROD		53001-
18	421-56-11611	HOOK		53001-
19	418-923-1660	LEVER		53001-
20	01580-10605	NUT		53001-
21	01641-20608	WASHER		53001-
22	418-923-2620	ROD,R.H.		53001-
23	421-56-11611	HOOK		53001-
24	421-56-11730	HANDLE,R.H.		53001-
25	01435-00612	BOLT		53001-
26	421-56-11740	COVER		53001-
27	421-56-11860	SCREW		53001-
28	418-923-2571	ROD		53001-
29	04052-10530	PIN		53001-
30	01641-20508	WASHER		53001-
31	425-54-16450	SPRING		53001-
32	425-54-16460	PIN		53001-
33	418-923-2511	LEVER		53001-
34	01580-10605	NUT		53001-
35	01641-20608	WASHER		53001-
36	418-923-2591	ROD		53001-
37	04256-40615	JOINT		53001-
38	01580-10605	NUT		53001-
39	01643-30623	WASHER		53001-
40	417-56-21520	BUSHING		53001-
41	417-56-21611	HANDLE,OUTER		55001-
	417-56-21612	HANDLE,OUTER		53180-55000
	417-56-21611	HANDLE,OUTER		53001-53179
42	01023-60612	SCREW		53001-
